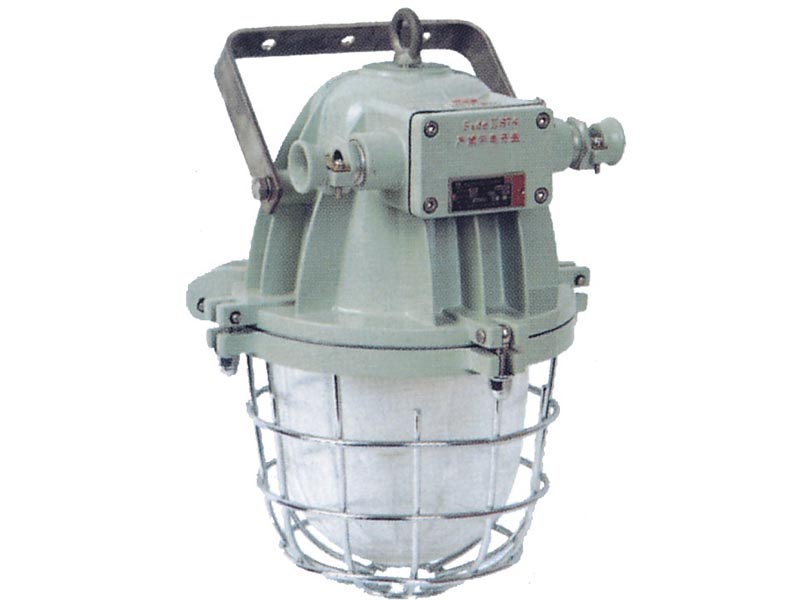

BAD61系列隔爆型防爆燈適用范圍 Application?
1區、2區危險場所。??????????????????????????????????????????? Can be used in Zone 1 and Zone 2 dangerous places.
ⅡA、ⅡB、IIC類性氣體環境。?????????????????????? Can be used in IIA、IIB、group explosive atmosphere.
可配裝白熾燈、汞燈、高壓鈉燈、金鹵燈。??????? Suitable for incandescent lamp,mercury vapor lamp,?
?????????????????????????????????????????????????????????????????????????????????????????? high-pressure sodium vapor lamp,metal halide lamp.?
BAD61系列隔爆型防爆燈型號含義 Model implication?
?適用環境及用途?
1.1區、2區危險場所。?
2.A 、B 、類性氣體環境。?
3.可以按要求制作粉塵防爆.?
4.注：要求IIC類或增安型請注明。?


產品特點
1.鑄鋁合金外殼，表面噴塑?
2.壓鑄成型，結構緊湊，外形美觀。?
3.采用碟型活節螺栓緊固，能快速向下開啟，便于維修。?
4.鋼管布線。?
5.符合GB3836-2000.IEC60079標準要求.?

防爆標志防護等級電纜外徑（，mm）出線口螺紋（G)燈座代號
Exd II BT4IP54 10-14 3/4 E27

光源類型白熾燈金鹵燈
額定電壓(V)220?
額定功率(W) 60 70
100

BAD61系列隔爆型防爆燈特點 Features?
■ 鑄鋁合金外殼，表面噴塑????????????????????????????????? ◆ Diecasted aluminium alloy shell with
■ 壓鑄成型，結構緊湊，外形美觀。????????????????????? ◆ Pressure-casted frmation,compact structure and aesthetic appearance.
■ 燈體和出線套采用無線連接,便于用戶安裝和維修.? ◆ The lampbldy and outlet sleeve use wireless wie connecting,it's convenient
???????????????????????????????????????????????????????????????????????????????????????????????????? for the users to install and maintatnce.
■ 鎮流器采用特制的環形鎮流器,耐熱等????????????????? ◆ The ballast uses special annulat ballast,higt heat-resitance,the inner ballest?????????????????
級高,鎮流器裝于燈體中,觸發器采用外???????????????????????? is installed in the lampbody,the rtigger use out-lay type which guarantees
置式,燈具能夠長壽命無故障運行.由于???????????????????????? the lamp has long life and no fault call off the special ballast box,which
取消專配的鎮流器箱,使燈具更加經經濟.????????????????????? makes the lamp more economic.?
■鋼管布線。???????????????????????????????????????????????????? ◆ Suitable for steelpipe.
??????????????????????????????????????????????????
■符合GB3836-2000.IEC60079標準要求.?????????? ◆ Suitable for GB3836-2000,IEC60079 standard request.?
