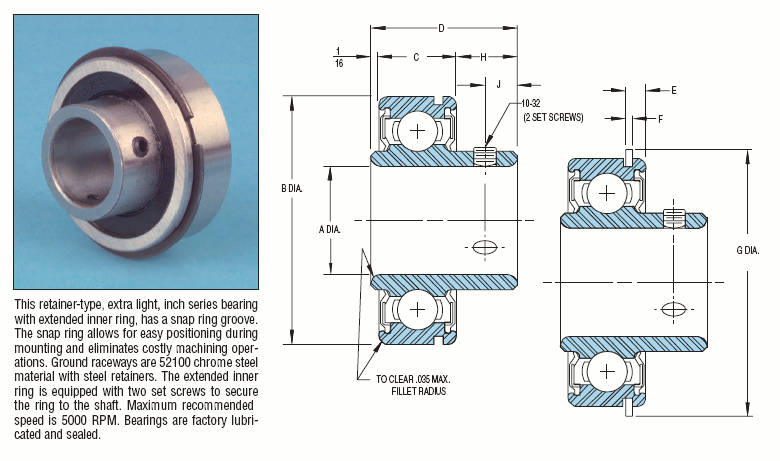

BASIC BEARING NUMBER |
BORE A +.0008 -.0000 |
OUTSIDE DIAMETER B |
WIDTH C |
WIDTH D |
E |
F |
G |
H |
J |
BASIC STATIC LOAD (lbs) |
BASIC DYNAMIC LOAD1 (lbs) |
WEIGHT (lbs) |
|||
|
OUTER RING +.000 -.005 |
INNER RING +.000 -.005 |
||||||||||||||
|
WITH SNAP RING |
inch |
tol. +.0000 |
|||||||||||||
|
7608DL
7610DL |
7608DLG
7610DLG |
.5000
.6250 |
1.7500
1.7500 |
-.0005
-.0005 |
.625
.625 |
1.092
1.092 |
.136
.136 |
.042
.042 |
1.921
1.921 |
.405
.405 |
.233
.233 |
707
707 |
1366
1366 |
.38
.34 |
|
|
7612DL
7614DL |
7612DLG
7614DLG |
.7500
.8750 |
1.7500
2.0000 |
-.0005
-.0006 |
.625
.625 |
1.092
1.179 |
.136
.136 |
.042
.042 |
1.921
2.156 |
.405
.492 |
.233
.261 |
707
1096 |
1366
2040 |
.31
.43 |
|
|
7616DL
7616D L |
7616DLG
7620DLG |
1.0000
1.2500 |
2.0000
2.5625 |
-.0006
-.0006 |
.625
.750 |
1.179
1.417 |
.136
.190 |
.042
.065 |
2.156
2.843 |
.492
.605 |
.261
.261 |
1096
1831 |
2040
3070 |
.36
.76 |
|
