商鋪名稱：臨清市普菲軸承有限公司
聯系人：管振清（先生）
聯系手機：
固定電話：
企業郵箱：sales@pftbearing.com
聯系地址：聊城市臨清市煙店工業園
郵編：252600
聯系我時，請說是在焊材網上看到的，謝謝！

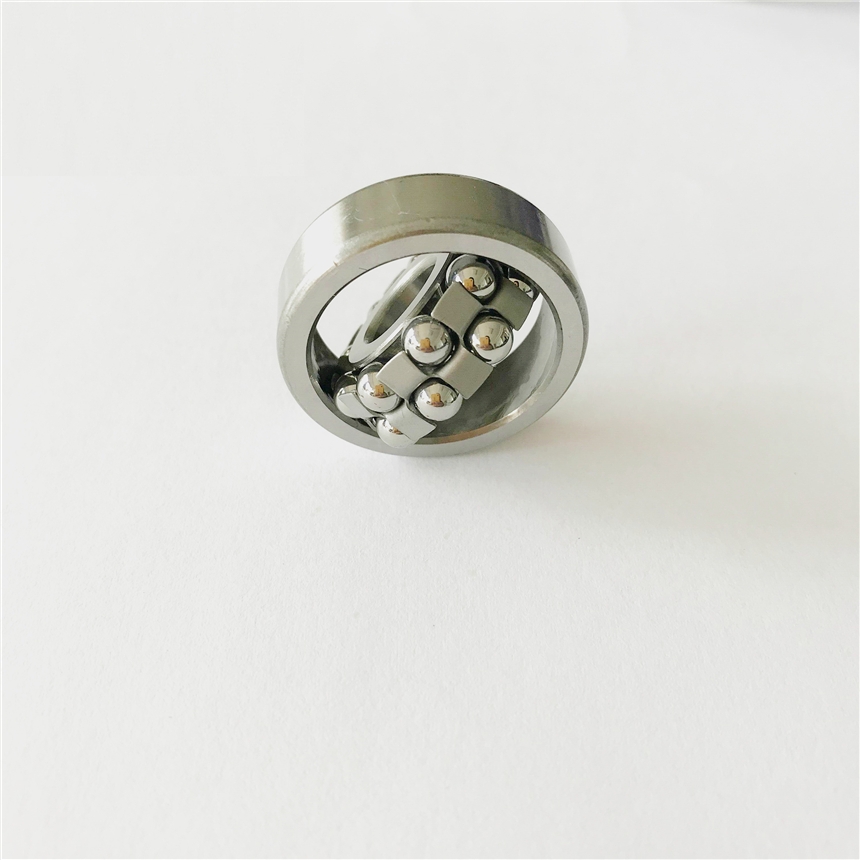

產品類型：調心球軸承
軸承型號：1300
內徑(d):10mm
外徑(D):35mm
高度(B):11mm
重量:0.058KG
硬度:59-62HRC
材質：軸承鋼，GCR15
外觀：精美，光亮，無劃痕，無磕碰傷
包裝：工業包裝或單個彩盒包裝
防銹：防銹質保二年
產品特點：運行速度快、易安裝、高精度、壽命長
臨清市普菲軸承有限公司，現貨型號如下：1300 1301
1302 1303 1304 1304K 1305 1305K 1306 1306K 1307
1307K 1308 1308K 1309 1309K 1310 1310K 1311 1311K
1312 1312K 1313 1313K 1314 1315 1315K 1316 1316K
1317 1317K 1318 1318K 1319 1319K 1320 1320K 1321
1322 1322K 如果您有需要的型號，歡迎隨時詢價。
| Bearing No. | Boundary dimensions | Basic load ratings(kN) | Limiting speed | Mass | |||||
| mm | Dynamic | Static | rpm | kg | |||||
| d | D | B | rsmin | Cr | Cor | Grease | Oil | ≈ | |
| 1300 | 10 | 35 | 11 | 0.6 | 7.25 | 1.62 | 18,000 | 21,000 | 0.058 |
| 1301 | 12 | 37 | 12 | 1 | 9.45 | 2.16 | 16,000 | 18,000 | 0.066 |
| 1302 | 15 | 42 | 13 | 1 | 9.55 | 2.3 | 13,000 | 16,000 | 0.092 |
| 1303 | 17 | 47 | 14 | 1 | 12.5 | 3.2 | 12,000 | 14,000 | 0.128 |
| 1304 | 20 | 52 | 15 | 1.1 | 12.4 | 3.35 | 11,000 | 13,000 | 0.160 |
| 1304K | 20 | 52 | 15 | 1.1 | 12.4 | 3.35 | 11,000 | 13,000 | 0.158 |
| 1305 | 25 | 62 | 17 | 1.1 | 18 | 5 | 9,100 | 11,000 | 0.255 |
| 1305K | 25 | 62 | 17 | 1.1 | 18 | 5 | 9,100 | 11,000 | 0.251 |
| 1306 | 30 | 72 | 19 | 1.1 | 21.3 | 6.3 | 7,700 | 9,100 | 0.383 |
| 1306K | 30 | 72 | 19 | 1.1 | 21.3 | 6.3 | 7,700 | 9,100 | 0.377 |
| 1307 | 35 | 80 | 21 | 1.5 | 25.1 | 7.85 | 6,800 | 8,000 | 0.500 |
| 1307K | 35 | 80 | 21 | 1.5 | 25.1 | 7.85 | 6,800 | 8,000 | 0.492 |
| 1308 | 40 | 90 | 23 | 1.5 | 29.6 | 9.7 | 6,000 | 7,000 | 0.709 |
| 1308K | 40 | 90 | 23 | 1.5 | 29.6 | 9.7 | 6,000 | 7,000 | 0.698 |
| 1309 | 45 | 100 | 25 | 1.5 | 38 | 12.7 | 5,400 | 6,300 | 0.953 |
| 1309K | 45 | 100 | 25 | 1.5 | 38 | 12.7 | 5,400 | 6,300 | 0.938 |
| 1310 | 50 | 110 | 27 | 2 | 43.5 | 14.1 | 4,900 | 5,800 | 1.200 |
| 1310K | 50 | 110 | 27 | 2 | 43.5 | 14.1 | 4,900 | 5,800 | 1.180 |
| 1311 | 55 | 120 | 29 | 2 | 51.5 | 17.9 | 4,500 | 5,200 | 1.580 |
| 1311K | 55 | 120 | 29 | 2 | 51.5 | 17.9 | 4,500 | 5,200 | 1.560 |
| 1312 | 60 | 130 | 31 | 2.1 | 57 | 20.8 | 4,100 | 4,800 | 1.960 |
| 1312K | 60 | 130 | 31 | 2.1 | 57 | 20.8 | 4,100 | 4,800 | 1.930 |
| 1313 | 65 | 140 | 33 | 2.1 | 62 | 22.9 | 3,800 | 4,500 | 2.420 |
| 1313K | 65 | 140 | 33 | 2.1 | 62 | 22.9 | 3,800 | 4,500 | 2.380 |
| 1314 | 70 | 150 | 35 | 2.1 | 74.5 | 27.7 | 3,500 | 4,200 | 2.990 |
| 1315 | 75 | 160 | 37 | 2.1 | 79.5 | 30 | 3,300 | 3,900 | 3.550 |
| 1315K | 75 | 160 | 37 | 2.1 | 79.5 | 30 | 3,300 | 3,900 | 3.500 |
| 1316 | 80 | 170 | 39 | 2.1 | 88.5 | 33 | 3,100 | 3,600 | 4.170 |
| 1316K | 80 | 170 | 39 | 2.1 | 88.5 | 33 | 3,100 | 3,600 | 4.110 |
| 1317 | 85 | 180 | 41 | 3 | 97.5 | 38 | 2,900 | 3,400 | 4.960 |
| 1317K | 85 | 180 | 41 | 3 | 97.5 | 38 | 2,900 | 3,400 | 4.890 |
| 1318 | 90 | 190 | 43 | 3 | 116 | 44.5 | 2,700 | 3,200 | 5.780 |
| 1318K | 90 | 190 | 43 | 3 | 116 | 44.5 | 2,700 | 3,200 | 5.690 |
| 1319 | 95 | 200 | 45 | 3 | 132 | 51 | 2,600 | 3,000 | 6.690 |
| 1319K | 95 | 200 | 45 | 3 | 132 | 51 | 2,600 | 3,000 | 6.590 |
| 1320 | 100 | 215 | 47 | 3 | 143 | 57.5 | 2,400 | 2,900 | 8.300 |
| 1320K | 100 | 215 | 47 | 3 | 143 | 57.5 | 2,400 | 2,900 | 8.190 |
| 1321 | 105 | 225 | 49 | 3 | 156 | 64.5 | 2,300 | 2,700 | 10.000 |
| 1322 | 110 | 240 | 50 | 3 | 164 | 71.5 | 2,200 | 2,600 | 11.800 |
| 1322K | 110 | 240 | 50 | 3 | 164 | 71.5 | 2,200 | 2,600 | 11.700 |
