| 產品特性 | |
| 1. 壽命長。2. 自放電率極低。3. 容量充足。4. 使用溫度范圍寬。5. 密封性能好。6. 導電性好。7. 充電接受能力強。8. 安全可靠的防爆排氣系統。 | |
| 應用領域 | |
| 1. 多用途的2. 不間斷電源3. 電子能源系統4.緊急備用電源5. 緊急燈6. 鐵路信號7. 航空信號8. 安防系統9. 電子器械與裝備10.通話系統電源11.直流電源12.自動控制系統 |
| 電池型號 Battery Model | 額定電壓 Voltage (V) | 額定容量 Nominal Capacity (AH) | 外形尺寸 Dimension (mm) | 端子形式 Terminal | |||||||
| 20HR | 10HR | 5HR | 3HR | 1HR | 長(±1) | 寬(±1) | 高(±1) | 總高(±1) | |||
| 1.80V/Cell | 1.80V/Cell | 1.75V/Cell | 1.75V/Cell | 1.67V/Cell | Length | Width | Height | Total Height | |||
| DJW4-0.4 | 4 | 0.40 | 0.370 | 0.345 | 0.312 | 0.248 | 35 | 22 | 40 | 45 | / |
| DJW4-0.7 | 4 | 0.70 | 0.65 | 0.60 | 0.55 | 0.44 | 35 | 22 | 64 | 69 | / |
| DJW4-1.2 | 4 | 1.20 | 1.12 | 1.03 | 0.94 | 0.74 | 35 | 22 | 92 | 97 | / |
| DJW4-3.5 | 4 | 3.50 | 3.26 | 3.00 | 2.73 | 2.17 | 90 | 34 | 59 | 65 | T1 |
| DJW4-4.0 | 4 | 4.00 | 3.72 | 3.45 | 3.12 | 2.48 | 47 | 47 | 101 | 107 | T1 |
| DJW4-4.5 | 4 | 4.50 | 4.19 | 3.85 | 3.51 | 2.79 | 52.5 | 48 | 94 | 100 | T1/T2 |
| DJW4-5.0 | 4 | 5.00 | 4.65 | 4.30 | 3.90 | 3.10 | 91 | 50 | 74 | 74 | T1/T2 |
| DJW4-8.0 | 4 | 8.00 | 7.40 | 6.90 | 6.24 | 4.95 | 91 | 50 | 101 | 101 | T2/T1 |
| DJW4-9.0 | 4 | 9.00 | 8.40 | 7.75 | 7.02 | 5.57 | 102 | 44 | 95 | 101 | T2 |
| DJW4-10 | 4 | 10.0 | 9.30 | 8.60 | 7.80 | 6.19 | 101.5 | 50 | 94 | 100 | T2 |
| DJW4-20 | 4 | 20.0 | 18.6 | 17.2 | 15.6 | 12.4 | 149 | 43 | 154 | 166 | T2/T3 |
| DJW6-0.5 | 6 | 0.50 | 0.47 | 0.43 | 0.39 | 0.31 | 57 | 14 | 50 | 52 | / |
| DJW6-1.0 | 6 | 1.00 | 0.93 | 0.86 | 0.78 | 0.62 | 51 | 42 | 51 | 57 | T1 |
| DJW6-1.2 | 6 | 1.20 | 1.12 | 1.03 | 0.94 | 0.74 | 97 | 24 | 51.5 | 57.5 | T1 |
| DJW6-2.0 | 6 | 2.00 | 1.86 | 1.72 | 1.56 | 1.24 | 43 | 37 | 76 | 76 | / |
| DJW6-2.5 | 6 | 2.50 | 2.33 | 2.15 | 1.95 | 1.55 | 106 | 42 | 69 | 69 | T1 |
| DJW6-2.8 | 6 | 2.80 | 2.60 | 2.40 | 2.19 | 1.73 | 134 | 34 | 60 | 66 | T1 |
| DJW6-2.8H | 6 | 2.80 | 2.60 | 2.40 | 2.19 | 1.73 | 66 | 33 | 97 | 103 | T1 |
| DJW6-3.0 | 6 | 3.00 | 2.79 | 2.58 | 2.34 | 1.86 | 70 | 47 | 100 | 106 | T2 |
| DJW6-3.2 | 6 | 3.20 | 2.98 | 2.75 | 2.49 | 1.98 | 134 | 34 | 60 | 66 | T1 |
| DJW6-3.2H | 6 | 3.20 | 2.98 | 2.75 | 2.49 | 1.98 | 66 | 33 | 118.5 | 124 | T1 |
| DJW6-3.5 | 6 | 3.50 | 3.26 | 3.00 | 2.73 | 2.17 | 70 | 47 | 100 | 106 | T2 |
| DJW6-4.0 | 6 | 4.00 | 3.72 | 3.45 | 3.12 | 2.48 | 70 | 47 | 100 | 106 | T1 |
| DJW6-4.2 | 6 | 4.20 | 3.91 | 3.60 | 3.27 | 2.60 | 70 | 47 | 100 | 106 | T1 |
| DJW6-4.5 | 6 | 4.50 | 4.19 | 3.85 | 3.51 | 2.79 | 70 | 47 | 100 | 106 | T1 |
| DJW6-5.0 | 6 | 5.00 | 4.65 | 4.30 | 3.90 | 3.10 | 169 | 35 | 70 | 74 | T1 |
| DJW6-5.0H | 6 | 5.00 | 4.65 | 4.30 | 3.90 | 3.10 | 70 | 47 | 100 | 106 | T1 |
| DJW6-5.5 | 6 | 5.50 | 5.12 | 4.75 | 4.29 | 3.40 | 151 | 34 | 94 | 100 | T1/T2 |
| DJW6-6.0 | 6 | 6.00 | 5.60 | 5.15 | 4.68 | 3.71 | 70 | 47 | 100 | 106 | T1 |
| DJW6-6.5 | 6 | 6.50 | 6.00 | 5.60 | 5.07 | 4.02 | 98 | 56 | 96 | 102 | T1/T2 |
| DJW6-7.0 | 6 | 7.00 | 6.50 | 6.00 | 5.46 | 4.33 | 151 | 34 | 94 | 100 | T2/T1 |
| DJW6-7.2 | 6 | 7.20 | 6.70 | 6.20 | 5.61 | 4.46 | 151 | 34 | 94 | 100 | T2/T1 |
| DJW6-7.5 | 6 | 7.50 | 7.00 | 6.45 | 5.85 | 4.64 | 151 | 34 | 94 | 100 | T2/T1 |
| DJW6-8.0 | 6 | 8.00 | 7.40 | 6.90 | 6.24 | 4.95 | 151 | 34 | 94 | 100 | T2/T1 |
| DJW6-8.5 | 6 | 8.50 | 7.90 | 7.30 | 6.63 | 5.26 | 98 | 56 | 118 | 120 | T2/T1 |
| DJW6-10 | 6 | 10.0 | 9.30 | 8.60 | 7.80 | 6.19 | 151 | 51 | 94 | 100 | T2/T1 |
| DJW6-12 | 6 | 12.0 | 11.2 | 10.3 | 9.36 | 7.43 | 151 | 51 | 94 | 100 | T2/T1 |
| DJW6-14 | 6 | 14.0 | 13.0 | 12.1 | 10.9 | 8.67 | 151 | 51 | 94 | 100 | T2/T1 |
| DJW6-20 | 6 | 20.0 | 18.6 | 17.2 | 15.6 | 12.4 | 157 | 83 | 125 | 125 | T3-A |
| DJW6-36 | 6 | 36.0 | 33.5 | 31.0 | 28.1 | 22.3 | 161 | 87 | 163 | 175 | T3-A |
| DJW12-0.8 | 12 | 0.80 | 0.74 | 0.69 | 0.62 | 0.50 | 96 | 25 | 62 | 62 | / |
| DJW12-1.2 | 12 | 1.20 | 1.12 | 1.03 | 0.94 | 0.74 | 97 | 43 | 52 | 58 | T1 |
| DJW12-1.9 | 12 | 1.90 | 1.77 | 1.64 | 1.48 | 1.18 | 178 | 35 | 60 | 66 | T1 |
| DJW12-2.0NP | 12 | 2.00 | 1.86 | 1.72 | 1.56 | 1.24 | 151 | 20 | 89 | 89 | / |
| DJW12-2.0C1 | 12 | 2.00 | 1.86 | 1.72 | 1.56 | 1.24 | 143 | 24 | 65 | 65 | / |
| DJW12-2.2 | 12 | 2.20 | 2.05 | 1.89 | 1.71 | 1.36 | 70 | 48 | 98 | 104 | T1 |
| DJW12-2.3 | 12 | 2.30 | 2.14 | 1.98 | 1.80 | 1.42 | 178 | 35 | 60 | 66 | T1 |
| DJW12-2.3C | 12 | 2.30 | 2.14 | 1.98 | 1.80 | 1.42 | 182 | 24 | 61 | 61 | / |
| DJW12-2.8 | 12 | 2.80 | 2.60 | 2.41 | 2.19 | 1.73 | 132 | 33 | 98 | 104 | T1 |
| DJW12-3.0 | 12 | 3.00 | 2.79 | 2.60 | 2.34 | 1.86 | 178 | 35 | 60.5 | 66 | T1 |
| DJW12-3.2 | 12 | 3.20 | 2.98 | 2.75 | 2.49 | 1.98 | 134 | 67 | 60.5 | 66.5 | T1 |
| DJW12-4.0 | 12 | 4.00 | 3.72 | 3.45 | 3.12 | 2.48 | 90 | 70 | 101 | 107 | T1 |
| DJW12-4.5 | 12 | 4.50 | 4.19 | 3.85 | 3.51 | 2.79 | 90 | 70 | 101 | 107 | T1 |

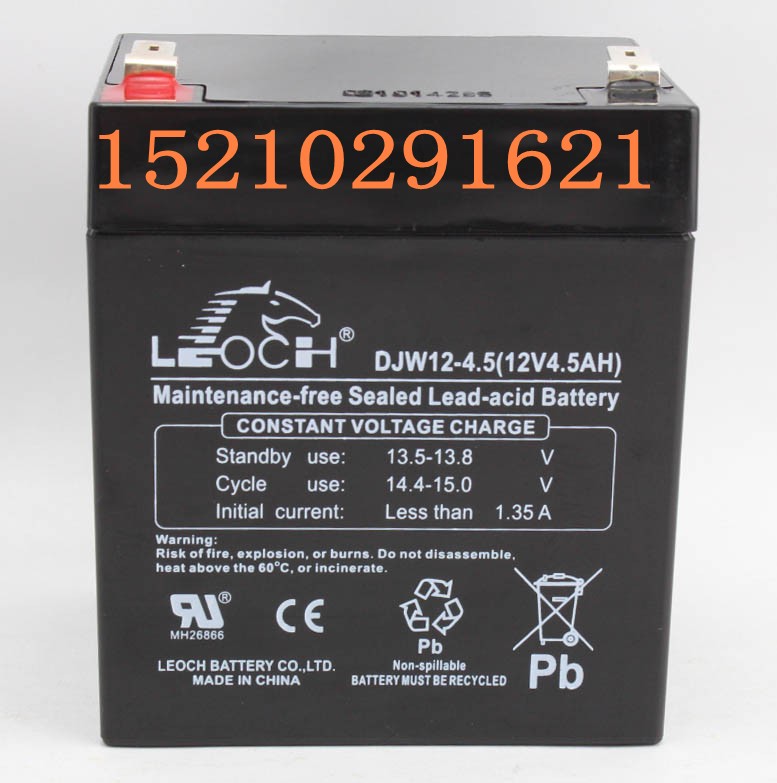

| DJW12-5.0 | 12 | 5.00 | 4.65 | 4.30 | 3.90 | 3.10 | 151 | 53 | 93 | 99 | T1/T2 |
| DJW12-5.0H | 12 | 5.00 | 4.65 | 4.30 | 3.90 | 3.10 | 90 | 70 | 101 | 107 | T1/T2 |
| DJW12-5.5 | 12 | 5.50 | 5.12 | 4.75 | 4.29 | 3.40 | 151 | 51 | 93 | 99 | T1/T2 |
| DJW12-6.0 | 12 | 6.00 | 5.60 | 5.15 | 4.68 | 3.71 | 90 | 70 | 101 | 105.5 | T3-H |
| DJW12-6.5 | 12 | 6.50 | 6.00 | 5.60 | 5.07 | 4.02 | 151 | 65 | 93.5 | 99 | T2/T1 |
| DJW12-7.0 | 12 | 7.00 | 6.50 | 6.00 | 5.46 | 4.33 | 151 | 65 | 93.5 | 99 | T2/T1 |
| DJW12-7.2 | 12 | 7.20 | 6.70 | 6.20 | 5.61 | 4.46 | 151 | 65 | 93.5 | 99 | T2/T1 |
| DJW12-7.5 | 12 | 7.50 | 7.00 | 6.45 | 5.85 | 4.64 | 151 | 65 | 93.5 | 99 | T2/T1 |
| DJW12-7.8 | 12 | 7.80 | 7.30 | 6.70 | 6.09 | 4.83 | 151 | 65 | 94.5 | 100 | T2/T1 |
| DJW12-8.0 | 12 | 8.00 | 7.40 | 6.90 | 6.24 | 4.95 | 151 | 65 | 94.5 | 100 | T2/T1 |
| DJW12-8.5 | 12 | 8.50 | 7.90 | 7.30 | 6.63 | 5.26 | 151 | 65 | 94.5 | 100 | T2/T1 |
| DJW12-9.0 | 12 | 9.00 | 8.40 | 7.75 | 7.02 | 5.57 | 151 | 98 | 95 | 101 | T2/T1 |
| DJW12-10 | 12 | 10.0 | 9.30 | 8.60 | 7.80 | 6.19 | 151 | 98 | 95 | 101 | T2/T1 |
| DJW12-10H | 12 | 10.0 | 9.30 | 8.60 | 7.80 | 6.19 | 151 | 65 | 111 | 117 | T2/T1 |
| DJW12-12 | 12 | 12.0 | 11.2 | 10.3 | 9.36 | 7.43 | 151 | 98 | 95 | 101 | T2/T3 |
| DJW12-14 | 12 | 14.0 | 13.0 | 12.1 | 10.9 | 8.67 | 151 | 98 | 95 | 101 | T2/T3 |
| DJW12-15 | 12 | 15.0 | 14.0 | 12.9 | 11.7 | 9.29 | 181.5 | 77 | 167.5 | 167.5 | T3/T12 |
| DJW12-17 | 12 | 17.0 | 15.8 | 14.6 | 13.3 | 10.5 | 181.5 | 77 | 167.5 | 167.5 | T3/T12 |
| DJW12-18 | 12 | 18.0 | 16.7 | 15.5 | 14.0 | 11.1 | 181.5 | 77 | 167.5 | 167.5 | T3/T12 |
| DJW12-20 | 12 | 20.0 | 18.6 | 17.2 | 15.6 | 12.4 | 181.5 | 77 | 167.5 | 167.5 | T3/T12 |
| DJW12-24 | 12 | 24.0 | 22.3 | 20.7 | 18.7 | 14.9 | 166.5 | 175 | 125 | 125 | T3/T12 |
| DJW12-26 | 12 | 26.0 | 24.2 | 22.4 | 20.3 | 16.1 | 166.5 | 175 | 125 | 125 | T3/T12 |
| DJW12-28 | 12 | 28.0 | 26.0 | 24.1 | 21.8 | 17.3 | 166.5 | 175 | 125 | 125 | T3/T12 |
| DJW12-30 | 12 | 30.0 | 27.9 | 25.8 | 23.4 | 18.6 | 195 | 130 | 164 | 178 | T5/T6 |
| DJW12-33 | 12 | 33.0 | 30.7 | 28.4 | 25.7 | 20.4 | 195 | 130 | 164 | 178 | T5/T6/T12 |
| DJW12-35 | 12 | 35.0 | 32.6 | 30.1 | 27.3 | 21.7 | 195 | 130 | 164 | 178 | T5/T6/T1 |
理士電池在長期不懈的開發研制VRLA電池（AGM隔板）的基礎上，完全依靠自己的技術和實力已成功地開發出LEOCH GEL BATTERY，經過模擬加速試驗顯示效果良好， 理士膠體電池各項質量指標均已達到國外先進水平，而且生產已成系列化。
理士蓄電池產品特性長時間放電特性。適用于備用和儲能電源使用。特殊的極板設計，循環使用壽命長。特殊的鉛鈣合金配方，增強了板柵的耐腐蝕性，延長了電池使用壽命。專用隔板增強了電池內部性能。熱容量大，減少了熱失控的風險，不易干涸，可在較惡劣的環境中使用。氣體復合效率高。失水極少無電解液層化現象。貯存期較長。良好的深放電恢復性能。采用氣相二氧化硅顆粒度小，比表面積大。自放電率極低，適應溫度范圍廣。采用閥控式安全閥，使用安全、可靠。
理士AGM系列閥控式密封鉛酸蓄電池廣泛使用在通信系統、電力系統、應急燈照明系統、自動化控制系統、消防和安全警報系統、太陽能、風能系統、計算機備用電源、便攜式儀器、儀表、醫療系統設備、電動車、電動工具等
