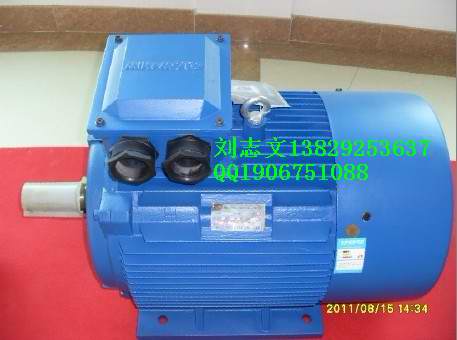

Y2系列三相異步電動機
Y系列電動機是全封閉自扇冷式鼠籠型三相異步動機，主要執行標準JB/T9616-1999，且符合標準IEC60034-1要求。
Y系列電動機額定電壓為380V，額定頻率為50Hz。功率3kW及以下為Y接法，其他功率均為△接法。
Y系列電動機具有高效，節能，起動轉矩大，噪音低，振動小，可靠性高，使用維護方便等特點。廣泛應用于不含易燃，易爆或腐蝕性氣體的一般場合和無特殊需要的機械設備上，如金屬切削機床，泵，風機，運輸機械，攪拌機，農業機械和食品機械等。
電動機運行地點的海拔不超過1000m；環境空氣溫度隨季節變化，但不超過40℃；最低環境空氣溫度為-15℃；
Y系列主要技術數據:
型號 |
功率 |
電流 A |
轉數 r/min |
效率 % |
功率 因素 |
堵轉電流 |
堵轉轉矩 |
最大轉矩 |
重量 kg |
HP/kW |
額定電流 |
額定轉矩 |
額定轉矩 |
||||||
Y801-2 |
1/0.75 |
1.8 |
2830 |
75 |
0.84 |
6.5 |
2.2 |
2.3 |
16 |
Y802-2 |
1.5/1.1 |
2.5 |
2830 |
77 |
0.86 |
7.0 |
2.2 |
2.3 |
17 |
Y90S-2 |
2/1.5 |
3.5 |
2840 |
78 |
0.85 |
7.0 |
2.2 |
2.3 |
22 |
Y90L-2 |
3/2.2 |
4.8 |
2840 |
80.5 |
0.86 |
7.0 |
2.2 |
2.3 |
25 |
Y100L-2 |
4/3 |
6.5 |
2870 |
82 |
0.87 |
7.0 |
2.2 |
2.3 |
33 |
Y112M-2 |
5.5/4 |
8.0 |
2890 |
85.5 |
0.87 |
7.0 |
2.2 |
2.3 |
45 |
Y132S1-2 |
7.5/5.5 |
11.0 |
2900 |
85.5 |
0.88 |
7.0 |
2.0 |
2.2 |
64 |
Y132S2-2 |
10/7.5 |
15.0 |
2900 |
86.2 |
0.88 |
7.0 |
2.0 |
2.2 |
70 |
Y160M1-2 |
15/11 |
21.5 |
2930 |
87.2 |
0.88 |
7.0 |
2.0 |
2.2 |
117 |
Y160M2-2 |
20/15 |
29.5 |
2930 |
88.2 |
0.88 |
7.0 |
2.0 |
2.2 |
125 |
Y160L-2 |
25/18.5 |
35.5 |
2930 |
89 |
0.89 |
7.0 |
2.0 |
2.2 |
147 |
Y180M-2 |
30/22 |
42.0 |
2940 |
89 |
0.89 |
7.0 |
2.0 |
2.2 |
180 |
Y200L1-2 |
40/30 |
57.0 |
2950 |
90 |
0.89 |
7.0 |
2.0 |
2.2 |
240 |
Y200L2-2 |
50/37 |
70.0 |
2950 |
90.5 |
0.89 |
7.0 |
2.0 |
2.2 |
255 |
Y225M-2 |
60/45 |
84.0 |
2970 |
91 |
0.89 |
7.0 |
2.0 |
2.2 |
309 |
Y250M-2 |
75/55 |
102.0 |
2970 |
91.5 |
0.89 |
7.0 |
2.0 |
2.2 |
403 |
Y280S-2 |
100/75 |
140.0 |
2970 |
92 |
0.89 |
7.0 |
2.0 |
2.2 |
544 |
Y280M-2 |
120/90 |
167 |
2970 |
92 |
0.89 |
7.0 |
2.0 |
2.2 |
620 |
Y315S-2 |
150/110 |
203 |
2980 |
92.5 |
0.89 |
6.5 |
1.8 |
2.2 |
980 |
Y315M-2 |
180/132 |
242 |
2980 |
93 |
0.89 |
6.5 |
1.8 |
2.2 |
1080 |
Y315 L1-2 |
220/160 |
292 |
2980 |
93.5 |
0.89 |
6.5 |
1.8 |
2.2 |
1160 |
Y315 L2-2 |
270/200 |
365 |
2980 |
93.5 |
0.89 |
6.5 |
1.8 |
2.2 |
1220 |
Y801-4 |
0.75/0.55 |
1.5 |
1390 |
73 |
0.76 |
6.0 |
2.4 |
2.3 |
17 |
Y802-4 |
1/0.75 |
2 |
1390 |
74.5 |
0.76 |
6.0 |
2.3 |
2.3 |
18 |
Y90S-4 |
1.5/1.1 |
2.5 |
1400 |
78 |
0.78 |
6.5 |
2.3 |
2.3 |
22 |
Y90L-4 |
2/1.5 |
3.5 |
1400 |
79 |
0.79 |
6.5 |
2.3 |
2.3 |
27 |
Y100L1-4 |
3/2.2 |
5 |
1430 |
81 |
0.82 |
7.0 |
2.2 |
2.3 |
34 |
Y100L2-4 |
4/3 |
6.5 |
1430 |
82.5 |
0.81 |
7.0 |
2.2 |
2.3 |
38 |
Y112M-4 |
5.5/4 |
8.5 |
1440 |
84.5 |
0.82 |
7.0 |
2.2 |
2.3 |
43 |
型號 |
功率 |
電流 A |
轉數 r/min |
效率 % |
功率 因素 |
堵轉電流 |
堵轉轉矩 |
最大轉矩 |
重量 kg |
HP/kW |
額定電流 |
額定轉矩 |
額定轉矩 |
||||||
Y132S-4 |
7.5/5.5 |
11.5 |
1440 |
85.5 |
0.84 |
7.0 |
2.2 |
2.3 |
68 |
Y132M-4 |
10/7.5 |
15.5 |
1440 |
87 |
0.85 |
7.0 |
2.2 |
2.3 |
81 |
Y160M-4 |
15/11 |
22.0 |
1460 |
88 |
0.84 |
7.0 |
2.2 |
2.3 |
123 |
Y160L-4 |
20/15 |
30.0 |
1460 |
88.5 |
0.85 |
7.0 |
2.2 |
2.3 |
144 |
Y180M-4 |
25/18.5 |
36.0 |
1470 |
91 |
0.86 |
7.0 |
2.0 |
2.2 |
182 |
Y180L-4 |
30/22 |
42.0 |
1470 |
91.5 |
0.86 |
7.0 |
2.0 |
2.2 |
190 |
Y200L-4 |
40/30 |
57.0 |
1470 |
92.2 |
0.87 |
7.0 |
2.0 |
2.2 |
270 |
Y225S-4 |
50/37 |
70.0 |
1480 |
92.5 |
0.87 |
7.0 |
2.0 |
2.2 |
284 |
Y225M-4 |
60/45 |
84.8 |
1480 |
92.8 |
0.87 |
7.0 |
2.0 |
2.2 |
320 |
Y250M-4 |
75/55 |
102.0 |
1480 |
92.6 |
0.88 |
7.0 |
2.0 |
2.2 |
427 |
Y280S-4 |
100/75 |
140.0 |
1480 |
92.7 |
0.88 |
7.0 |
1.9 |
2.2 |
562 |
Y280M-4 |
125/90 |
165.0 |
1480 |
93.5 |
0.89 |
7.0 |
1.9 |
2.2 |
667 |
Y315S-4 |
150/110 |
201 |
1480 |
93.5 |
0.89 |
7.0 |
1.8 |
2.2 |
1000 |
Y315M-4 |
180/132 |
240 |
1490 |
94 |
0.89 |
7.0 |
1.8 |
2.2 |
1100 |
Y315L1-4 |
220/160 |
289 |
1490 |
94.5 |
0.89 |
7.0 |
1.8 |
2.2 |
1160 |
Y315L2-4 |
270/200 |
361 |
1490 |
94.5 |
0.89 |
7.0 |
1.8 |
2.2 |
1220 |
Y90S-6 |
1/0.8 |
2.5 |
910 |
72.5 |
0.70 |
5.5 |
2.0 |
2.0 |
23 |
Y90L-6 |
1.5/1.1 |
3.0 |
910 |
73.5 |
0.72 |
5.5 |
2.0 |
2.0 |
25 |
Y100L-6 |
2/1.5 |
4 |
940 |
77.5 |
0.74 |
6.0 |
2.0 |
2.0 |
33 |
Y112M-6 |
3/2.2 |
5.5 |
940 |
80.5 |
0.74 |
6.0 |
2.0 |
2.0 |
45 |
Y132S-6 |
4/3 |
7.2 |
960 |
83 |
0.76 |
6.5 |
2.0 |
2.0 |
63 |
Y132M1-6 |
5.5/4 |
9.5 |
960 |
84 |
0.77 |
6.5 |
2.0 |
2.0 |
73 |
Y132M2-6 |
7.5/5.5 |
12.6 |
960 |
85.5 |
0.78 |
6.5 |
2.0 |
2.0 |
84 |
Y160M-6 |
10/7.5 |
17 |
970 |
86 |
0.78 |
6.5 |
2.0 |
2.0 |
119 |
Y160L-6 |
15/11 |
24.6 |
970 |
87 |
0.78 |
6.5 |
2.0 |
2.0 |
147 |
Y180L-6 |
20/15 |
31.5 |
970 |
89.5 |
0.81 |
6.5 |
1.8 |
2.0 |
195 |
Y200L1-6 |
25/18.5 |
37.5 |
970 |
89.8 |
0.83 |
6.5 |
1.8 |
2.0 |
220 |
Y200L2-6 |
30/22 |
45.0 |
970 |
90.2 |
0.83 |
6.5 |
1.8 |
2.0 |
250 |
Y225M-6 |
40/30 |
59.0 |
980 |
91.5 |
0.84 |
6.5 |
1.8 |
2.0 |
292 |
Y250M-6 |
50/37 |
72 |
980 |
90.8 |
0.86 |
6.5 |
1.7 |
2.0 |
408 |
Y280S-6 |
60/45 |
85.0 |
980 |
92 |
0.87 |
6.5 |
1.8 |
2.0 |
536 |
Y280M-6 |
75/55 |
104.0 |
980 |
92 |
0.87 |
6.5 |
1.8 |
2.0 |
595 |
Y315S-6 |
100/75 |
142 |
990 |
92.8 |
0.87 |
6.5 |
1.6 |
2.0 |
995 |
Y315M-6 |
125/90 |
170 |
990 |
93 |
0.87 |
6.5 |
1.6 |
2.0 |
1080 |
Y315L1-6 |
150/110 |
206 |
990 |
93.5 |
0.87 |
6.5 |
1.6 |
2.0 |
1150 |
Y315L2-6 |
180/132 |
246 |
990 |
93.8 |
0.87 |
6.5 |
1.6 |
2.0 |
1210 |
Y132S-8 |
3/2.2 |
6.0 |
710 |
80.5 |
0.71 |
5.5 |
2.0 |
2.0 |
63 |
Y132M-8 |
4/3 |
7.5 |
710 |
82 |
0.72 |
5.5 |
2.0 |
2.0 |
79 |
Y160M1-8 |
5.5/4 |
10.0 |
720 |
84 |
0.73 |
6.0 |
2.0 |
2.0 |
118 |
Y160M2-8 |
7.5/5.5 |
13.5 |
720 |
85 |
0.74 |
6.0 |
2.0 |
2.0 |
119 |
Y160L-8 |
10/7.5 |
17.0 |
720 |
86 |
0.75 |
6.5 |
2.0 |
2.0 |
145 |
型號 |
功率 |
電流 A |
轉數 r/min |
效率 % |
功率 因素 |
堵轉電流 |
堵轉轉矩 |
最大轉矩 |
重量 kg |
HP/kW |
額定電流 |
額定轉矩 |
額定轉矩 |
||||||
Y180L-8 |
15/11 |
25.0 |
730 |
87.5 |
0.77 |
6.0 |
1.7 |
2.0 |
184 |
Y200L-8 |
20/15 |
34.0 |
730 |
88 |
0.76 |
6.0 |
1.8 |
2.0 |
250 |
Y225S-8 |
25/18.5 |
41.0 |
730 |
89.5 |
0.76 |
6.0 |
1.7 |
2.0 |
266 |
Y225M-8 |
30/22 |
48.0 |
740 |
90 |
0.78 |
6.0 |
1.8 |
2.0 |
292 |
Y250M-8 |
40/30 |
63 |
740 |
90.5 |
0.80 |
6.0 |
1.8 |
2.0 |
405 |
Y250S-8 |
50/37 |
78.0 |
740 |
91 |
0.79 |
6.0 |
1.8 |
2.0 |
520 |
Y280M-8 |
60/45 |
93.0 |
740 |
91.7 |
0.80 |
6.0 |
1.8 |
2.0 |
592 |
Y315S-8 |
75/55 |
112 |
740 |
92 |
0.80 |
6.5 |
1.6 |
2.0 |
1000 |
Y315M-8 |
100/75 |
153.0 |
740 |
92.5 |
0.81 |
6.5 |
1.6 |
2.0 |
110 |
Y315L1-8 |
125/90 |
180.0 |
740 |
93 |
0.82 |
6.5 |
1.6 |
2.0 |
1160 |
Y315L2-8 |
150/110 |
220.0 |
740 |
93.3 |
0.82 |
6.3 |
1.6 |
2.0 |
1230 |
Y系列外形及安裝尺寸：
安裝尺寸圖:
機座號 |
級數 |
Y系列外形及安裝尺寸： (mm) |
|||||||||||||||||||
安裝尺寸 |
外形尺寸 |
||||||||||||||||||||
H |
A |
B |
C |
D |
E |
F |
G |
K |
M |
N |
P |
R |
S |
T |
AB |
AC |
AD |
HD |
L |
||
80M |
2,4 |
80 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
10 |
165 |
130 |
200 |
0 |
12 |
3.5 |
165 |
175 |
150 |
175 |
290 |
90S |
2,4,6 |
90 |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
10 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
195 |
160 |
195 |
315 |
90L |
2,4,6 |
90 |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
10 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
195 |
160 |
195 |
340 |
100L |
2,4,6 |
100 |
160 |
140 |
63 |
28 |
60 |
8 |
24 |
12 |
215 |
180 |
250 |
0 |
15 |
4 |
205 |
215 |
180 |
245 |
380 |
112M |
2,4,6 |
112 |
190 |
140 |
70 |
28 |
60 |
8 |
24 |
12 |
215 |
180 |
250 |
0 |
15 |
4 |
245 |
240 |
190 |
265 |
400 |
132S |
2,4,6,8 |
132 |
216 |
140 |
89 |
38 |
80 |
10 |
33 |
12 |
265 |
230 |
300 |
0 |
15 |
4 |
280 |
275 |
210 |
315 |
475 |
132M |
2,4,6,8 |
132 |
216 |
178 |
89 |
38 |
80 |
10 |
33 |
12 |
265 |
230 |
300 |
0 |
15 |
4 |
280 |
275 |
210 |
315 |
515 |
160M |
2,4,6,8 |
160 |
254 |
210 |
108 |
42 |
110 |
12 |
37 |
15 |
300 |
250 |
350 |
0 |
19 |
5 |
330 |
335 |
265 |
385 |
605 |
160L |
2,4,6,8 |
160 |
254 |
254 |
108 |
42 |
110 |
12 |
37 |
15 |
300 |
250 |
350 |
0 |
19 |
5 |
330 |
335 |
265 |
385 |
650 |
180M |
2,4,6,8 |
180 |
279 |
241 |
121 |
48 |
110 |
14 |
42.5 |
15 |
300 |
250 |
350 |
0 |
19 |
5 |
355 |
380 |
285 |
430 |
670 |
180L |
2,4,6,8 |
180 |
279 |
279 |
121 |
48 |
110 |
14 |
42.5 |
15 |
300 |
250 |
350 |
0 |
19 |
5 |
355 |
380 |
285 |
430 |
710 |
200L |
2,4,6,8 |
200 |
318 |
305 |
133 |
55 |
110 |
16 |
49 |
19 |
350 |
300 |
400 |
0 |
19 |
5 |
395 |
420 |
315 |
475 |
775 |
225S |
4,8 |
225 |
356 |
286 |
149 |
60 |
140 |
18 |
53 |
19 |
400 |
350 |
450 |
0 |
19 |
5 |
435 |
475 |
345 |
530 |
820 |
225M |
2 |
225 |
356 |
311 |
149 |
55 |
110 |
16 |
49 |
19 |
400 |
350 |
450 |
0 |
19 |
5 |
435 |
475 |
345 |
530 |
815 |
225M |
4,6,8 |
225 |
356 |
311 |
149 |
60 |
140 |
18 |
53 |
19 |
400 |
350 |
450 |
0 |
19 |
5 |
435 |
475 |
345 |
530 |
845 |
機座號 |
級數 |
Y系列外形及安裝尺寸： (mm) |
|||||||||||||||||||
安裝尺寸 |
外形尺寸 |
||||||||||||||||||||
H |
A |
B |
C |
D |
E |
F |
G |
K |
M |
N |
P |
R |
S |
T |
AB |
AC |
AD |
HD |
L |
||
250M |
2 |
250 |
406 |
349 |
168 |
60 |
140 |
18 |
53 |
24 |
500 |
450 |
550 |
0 |
19 |
5 |
490 |
515 |
385 |
575 |
930 |
250M |
4,6,8 |
250 |
406 |
349 |
168 |
65 |
140 |
18 |
58 |
24 |
500 |
450 |
550 |
0 |
19 |
5 |
490 |
515 |
385 |
575 |
930 |
280S |
2 |
280 |
457 |
368 |
190 |
65 |
140 |
18 |
58 |
24 |
500 |
450 |
550 |
0 |
19 |
5 |
550 |
585 |
410 |
640 |
1000 |
280S |
4,6,8 |
280 |
457 |
368 |
190 |
75 |
140 |
20 |
67.5 |
24 |
500 |
450 |
550 |
0 |
19 |
5 |
550 |
585 |
410 |
640 |
1000 |
280M |
2 |
280 |
457 |
419 |
190 |
65 |
140 |
18 |
58 |
24 |
500 |
450 |
550 |
0 |
19 |
5 |
550 |
585 |
410 |
640 |
1050 |
280M |
4,6,8 |
280 |
457 |
419 |
190 |
75 |
140 |
20 |
67.5 |
24 |
500 |
450 |
550 |
0 |
19 |
5 |
550 |
585 |
410 |
640 |
1050 |
315S |
2 |
315 |
508 |
406 |
216 |
65 |
140 |
18 |
58 |
28 |
600 |
550 |
660 |
0 |
24 |
6 |
744 |
645 |
576 |
865 |
1240 |
