sakagami阪上PCS型外鐵殼緩沖密封件
PCS-F型為耐高溫氟橡膠材質
上海泛塞代理阪上密封圈
PCS是標準的氣壓緩沖密封件.
材質:RN803(RF903),使用溫度-5~+80℃(-5~+150℃)
工作壓力:≤1Mpa,最大線速度 0.5M/s.
用途:標準汽缸.
2016年辦公地址昆山花橋鎮, 163郵箱:nsknok

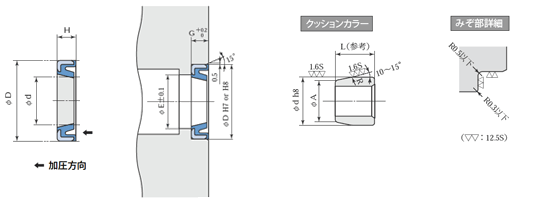

型號 規格尺寸(d*D*H)
PCS -10 10*18*4.7
PCS-11.2 11.2*19.2*4.7
PCS-14 14*22*4.7
PCS-15 15*23*4.7
PCS-16 16*24*4.7
PCS-18 18*26*4.7
PCS-20 20*28*4.7
PCS-22 22*30*4.7
PCS-22.4 22.4*30.4*4.7
PCS-24 24*32*4.7
PCS-25 25*33*4.7
PCS-28 28*36*4.7
PCS-30 30*40*5.6
PCS-31.5 31.5*41.5*5.6
PCS-35 35*45*5.6
fseals TEL-0512-3683-2563
fseals 微信-13621890604
PCS-35.5 35.5*35.5*5.6
PCS-38 38*48*5.6
PCS-40 40*50*5.6
PCS-45 45*55*5.6
PCS-50 50*62*6.6
PCS-55 55*67*6.6
PCS-56 56*68*6.6
PCS-60 60*72*6.6
PCS-65 65*77*6.6
PCS -0075002N803 75*87*6.6
PCS -0085002N803 85*97*6.6
PCS -0120002N803 120*132*6.6
PCS -0130001N803 130*142*6.6
fseals Q-584495835
fseals Q-2426651639

氟膠 耐熱性 規格尺寸(d*D*H)
PCS-16F 16*24*4.7
PCS-18F 18*26*4.7
PCS-20F 20*28*4.7
PCS-24F 24*32*4.7
PCS-25F 25*33*4.7
PCS-28F 28*36*4.7
PCS-30F 30*40*5.6
PCS-35F 35*45*5.6
TEL-0512-3683-2563
微信-13621890604
PCS-35.5F 35.5*35.5*5.6
PCS-38F 38*48*5.6
PCS-40F 40*50*5.6
PCS-50F 50*62*6.6
PCS-60F 60*72*6.6
PCS -0075002F803 75*87*6.6
PCS -0085002F803 85*97*6.6
PCS -0120002F803 120*132*6.6
