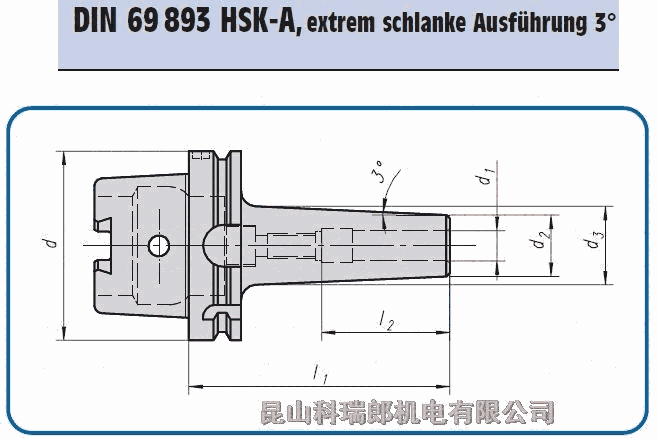

DIN 69 893 HSK-A, extrem schlanke Ausführung 3°
應用：裝夾硬質合金與高速鋼刀具，柄公差h6。
Application: For mounting of solid carbide and HSS-cutters ，shank h6 tolerance
執行：相對于外錐面，刀柄夾持孔的跳動量為0.003mm。
Execution: Permissible excentricity difference of the taper to the boring 0,003 mm.
|
Bestell-Nr. Code No. |
HSK-d | d1 | d2 | d3 | l1 | l2 | g |
| 93.05.071.300 | HSK-A 63 | 3 | 8 | 13 | 80 | 10 | |
| 93.05.071.301 | 4 | 9 | 14 | 80 | 20 | M 3 | |
| 93.05.071.302 | 5 | 10 | 15 | 80 | 20 | M 4 | |
| 93.05.071.303 | 6 | 12 | 17 | 80 | 36 | M 5 | |
| 93.05.071.304 | 8 | 16 | 21 | 80 | 36 | M 6 | |
| 93.05.071.305 | HSK-A 63 | 10 | 20 | 25,7 | 85 | 42 | M8x1 |
| 93.05.071.306 | 12 | 24 | 30,2 | 90 | 47 | M10x1 | |
| 93.05.071.307 | 14 | 26 | 32,2 | 90 | 47 | M10x1 | |
| 93.05.071.308 | 16 | 28 | 34,8 | 95 | 50 | M12x1 | |
| 93.05.071.309 | 18 | 31 | 37,7 | 95 | 50 | M12x1 | |
| 93.05.071.310 | HSK-A 63 | 20 | 34 | 41,2 | 100 | 52 | M16x1 |
| 93.05.071.311 | 25 | 39 | 48,2 | 115 | 58 | M16x1 | |
| 93.05.071.312 | 32 | 44 | 50 | 120 | 62 | M16x |
