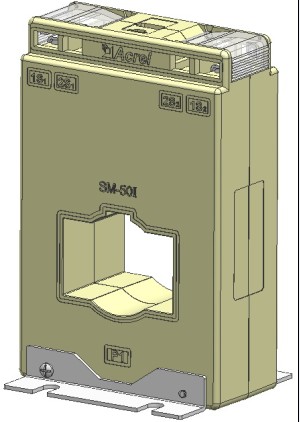

江蘇安科瑞電器制造有限公司自主研發的AKH-0.66SM型雙繞組電流傳感器可有兩路輸出，其一（1S1，1S2）輸出AC0-5A或0-1A，與測量、計量裝置配套使用；其二（2S1+，2S2-）輸出DC4-20mA，與自控儀表（如PLC）配套使用，其中輔助電源DC24V由PLC供電。
| 型號 | 規格 | 出廠價 （元/臺） |
| SM-50I | 5/AC5A/DC4-20mA | 521 |
| 10/AC5A/DC4-20mA | 521 | |
| 15/AC5A/DC4-20mA | 521 | |
| 20/AC5A/DC4-20mA | 521 | |
| 25/AC5A/DC4-20mA | 521 | |
| 30/AC5A/DC4-20mA | 521 | |
| 40/AC5A/DC4-20mA | 521 | |
| 50/AC5A/DC4-20mA | 521 | |
| 60/AC5A/DC4-20mA | 521 | |
| 75/AC5A/DC4-20mA | 526 | |
| 80/AC5A/DC4-20mA | 521 | |
| 100/AC5A/DC4-20mA | 521 | |
| 150/AC5A/DC4-20mA | 526 | |
| 200/AC5A/DC4-20mA | 528 | |
| 300/AC5A/DC4-20mA | 529 | |
| 400/AC5A/DC4-20mA | 531 | |
| 500/AC5A/DC4-20mA | 533 | |
| 600/AC5A/DC4-20mA | 535 | |
| 750/AC5A/DC4-20mA | 537 | |
| 800/AC5A/DC4-20mA | 539 | |
| 1000/AC5A/DC4-20mA | 547 | |
| 1200/AC5A/DC4-20mA | 562 | |
| SM-60II | 300/AC5A/DC4-20mA | 526 |
| 400/AC5A/DC4-20mA | 529 | |
| 500/AC5A/DC4-20mA | 533 | |
| 600/AC5A/DC4-20mA | 537 | |
| 750/AC5A/DC4-20mA | 542 | |
| 800/AC5A/DC4-20mA | 547 | |
| 1000/AC5A/DC4-20mA | 570 | |
| 1200/AC5A/DC4-20mA | 576 | |
| 1250/AC5A/DC4-20mA | 595 | |
| 1500/AC5A/DC4-20mA | 611 | |
| 2000/AC5A/DC4-20mA | 642 | |
| SM-80II | 600/AC5A/DC4-20mA | 563 |
| 750/AC5A/DC4-20mA | 569 | |
| 800/AC5A/DC4-20mA | 575 | |
| 1000/AC5A/DC4-20mA | 587 | |
| 1200/AC5A/DC4-20mA | 602 | |
| 1250/AC5A/DC4-20mA | 611 | |
| 1500/AC5A/DC4-20mA | 623 | |
| 2000/AC5A/DC4-20mA | 644 | |
| 2500/AC5A/DC4-20mA | 668 | |
| 3000/AC5A/DC4-20mA | 692 | |
| SM-100II | 1000/AC5A/DC4-20mA | 644 |
| 1200/AC5A/DC4-20mA | 647 | |
| 1250/AC5A/DC4-20mA | 651 | |
| 1500/AC5A/DC4-20mA | 658 | |
| 2000/AC5A/DC4-20mA | 665 | |
| 2500/AC5A/DC4-20mA | 689 | |
| 3000/AC5A/DC4-20mA | 714 | |
| 4000/AC5A/DC4-20mA | 765 | |
| SM-120II | 2000/AC5A/DC4-20mA | 677 |
| 2500/AC5A/DC4-20mA | 737 | |
| 3000/AC5A/DC4-20mA | 761 | |
| 4000/AC5A/DC4-20mA | 773 | |
| 5000/AC5A/DC4-20mA | 836 | |
| SM-200II | 2000/AC5A/DC4-20mA | 1313 |
| 2500/AC5A/DC4-20mA | 1344 | |
| 3000/AC5A/DC4-20mA | 1395 | |
| 4000/AC5A/DC4-20mA | 1444 | |
| 5000/AC5A/DC4-20mA | 1500 | |
| 6300/AC5A/DC4-20mA | 1600 | |
| AKH-0.66/SM型（1A） | ||
| 型號 | 規格 | 價格 |
| SM-50I | 5/AC1A/DC4-20mA | 530 |
| 10/AC1A/DC4-20mA | 530 | |
| 15/AC1A/DC4-20mA | 530 | |
| 20/AC1A/DC4-20mA | 530 | |
| 25/AC1A/DC4-20mA | 530 | |
| 30/AC1A/DC4-20mA | 530 | |
| 40/AC1A/DC4-20mA | 530 | |
| 50/AC1A/DC4-20mA | 530 | |
| 60/AC1A/DC4-20mA | 530 | |
| 75/AC1A/DC4-20mA | 546 | |
| 80/AC1A/DC4-20mA | 530 | |
| 100/AC1A/DC4-20mA | 530 | |
| 150/AC1A/DC4-20mA | 546 | |
| 200/AC1A/DC4-20mA | 580 | |
| 300/AC1A/DC4-20mA | 597 | |
| 400/AC1A/DC4-20mA | 623 | |
| 500/AC1A/DC4-20mA | 634 | |
| 600/AC1A/DC4-20mA | 642 | |
| 750/AC1A/DC4-20mA | 649 | |
| 800/AC1A/DC4-20mA | 656 | |
| 1000/AC1A/DC4-20mA | 666 | |
| 1200/AC1A/DC4-20mA | 672 | |
| SM-60II | 300/AC1A/DC4-20mA | 626 |
| 400/AC1A/DC4-20mA | 629 | |
| 500/AC1A/DC4-20mA | 648 | |
| 600/AC1A/DC4-20mA | 655 | |
| 750/AC1A/DC4-20mA | 661 | |
| 800/AC1A/DC4-20mA | 663 | |
| 1000/AC1A/DC4-20mA | 673 | |
| 1200/AC1A/DC4-20mA | 679 | |
| 1250/AC1A/DC4-20mA | 685 | |
| 1500/AC1A/DC4-20mA | 694 | |
| 2000/AC1A/DC4-20mA | 718 | |
| SM-80II | 600/AC1A/DC4-20mA | 687 |
| 750/AC1A/DC4-20mA | 689 | |
| 800/AC1A/DC4-20mA | 699 | |
| 1000/AC1A/DC4-20mA | 709 | |
| 1200/AC1A/DC4-20mA | 719 | |
| 1250/AC1A/DC4-20mA | 723 | |
| 1500/AC1A/DC4-20mA | 728 | |
| 2000/AC1A/DC4-20mA | 736 | |
| 2500/AC1A/DC4-20mA | 749 | |
| 3000/AC1A/DC4-20mA | 763 | |
| SM-100II | 1000/AC1A/DC4-20mA | 712 |
| 1200/AC1A/DC4-20mA | 721 | |
| 1250/AC1A/DC4-20mA | 729 | |
| 1500/AC1A/DC4-20mA | 735 | |
| 2000/AC1A/DC4-20mA | 748 | |
| 2500/AC1A/DC4-20mA | 760 | |
| 3000/AC1A/DC4-20mA | 773 | |
| 4000/AC1A/DC4-20mA | 791 | |
| SM-120II | 2000/AC1A/DC4-20mA | 862 |
| 2500/AC1A/DC4-20mA | 888 | |
| 3000/AC1A/DC4-20mA | 996 | |
| 4000/AC1A/DC4-20mA | 967 | |
| 5000/AC1A/DC4-20mA | 1019 | |
| SM-200II | 2000/AC1A/DC4-20mA | 1805 |
| 2500/AC1A/DC4-20mA | 1889 | |
| 3000/AC1A/DC4-20mA | 2015 | |
| 4000/AC1A/DC4-20mA | 2078 | |
| 5000/AC1A/DC4-20mA | 2120 | |
| 6300/AC1A/DC4-20mA | 2483 | |
