華一自動化技術有限公司創建于1999年是一家經營工業自動化產品及提供工業自動化技術服務公司，專業引進代理自動化領域內傳動及控制技術精工制作器件。華一自動化技術有限公司與臺灣城邦精密工業股份有限公司攜手合作多年，我公司被授權于城邦減速電機（CPG）的大陸直銷總部，專業銷售城邦齒輪減速馬達。

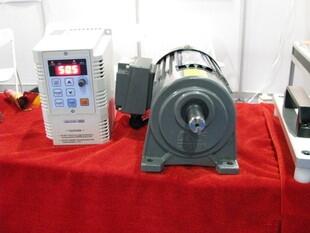

CPG齒輪減速馬達已獲ISO9002認證、CE認證、CCC認證、UL認證，功率范圍：100W-3700W，減速比范圍：1/3-1/1800；三相/單相；材質采用鋁合金ADC-12/鑄鐵FC-20，馬達齒輪、齒軸采用含鉬高級合金鋼經SKIVING精密滾齒加工，經過高周波熱處理，齒輪厚度較厚表硬內韌，超強耐磨、傳遞扭矩大，承載能力可達一般產品的2-3倍,精度等級為1-2級；馬達部分皆采用瑞典SKF或同等級精密軸承；本馬達具有較強的防水性（IP-55鋁制接線盒），較易散熱及運轉效率高。

機型代號：CH(臥式安裝、含電機)CV（立式安裝、含電機）CHM（臥式入力法蘭齒輪減速機、自配各類馬達）CVM（立式入力法蘭齒輪減速機、自配各類馬達）CHD（臥式雙軸齒輪減速機）CVD（立式雙軸齒輪減速機）。
電機功率：100w-3700w,速比1：3.5...1800（可定做速比為1：10，1：20正數比減速器）

0.1KW  1/8HP：CH100-3S，CH100-5S，CH100-10S，CH100-15S，CH100-20S，CH100-25S，CH100-30S，CH100-40S，CH100-45S，CH100-50S，CH100-60S，CH100-70S，CH100-80S，CH100-90S

臺灣晟邦調速電機  CH100-100S，CH100-120S，CH100-140S，CH100-150S，CH100-160S，

臺灣晟邦減速電機CH100-180S，CH100-200S，CH100-250-1800S，0.2KW  1/4HP：CH200-3S，CH200-5S，CH200-10S，CH200-15S，CH200-20S，

臺灣晟邦  CH200-25S，CH200-30S，CH200-40S，CH200-45S，CH200-50S，CH200-60S，CH200-70S，CH200-80S，CH200-90S，CH200-100S，CH200-120S，CH200-140S，CH200-150S，CH200-160S，

臺灣晟邦CH200-180S，CH200-200S，CH200-250-1800S

0.4KW  1/2HP：CH400-3S，CH400-5S，CH400-10S，CH400-15S，CH400-20S，CH400-25S，CH400-30S，CH400-40S，CH400-45S，CH400-50S，CH400-60S，CH400-70S，CH400-80S，CH400-90S，CH400-100S，CH400-120S，CH400-140S，CH400-150S，CH400-160S

臺灣晟邦減速機CH400-180S，CH400-200S，CH400-250-1800S

0.75KW  1HP：CH750-3S，CH750-5S，CH750-10S，CH750-15S，CH750-20S，CH750-25S，CH750-30S，CH750-40S，CH750-45S，CH750-50S，CH750-60S，CH750-70S

臺灣晟邦電機CH750-80S，CH750-90S，CH750-100S，CH750-120S，CH750-140S，CH750-150S

臺灣晟邦齒輪電機CH750-160S，CH750-180S，CH750-200S，CH750-250-1800S

1.5KW  2HP：CH1500-3S，CH1500-5S，CH1500-10S，CH1500-15S

臺灣晟邦減速電機CH1500-20S，CH1500-25S，CH1500-30S，CH1500-40S，CH1500-45S，CH1500-50S，CH1500-60S，CH1500-70S，CH1500-80S，CH1500-90S，CH1500-100S，CH1500-120S，CH1500-140S，CH1500-150S

臺灣晟邦齒輪減速機CH1500-160S，CH1500-180S，CH1500-200S，CH1500-250-1800S

2.2KW  3HP：CH2200-3S，CH2200-5S，CH2200-10S

臺灣晟邦調速電機CH2200-15S，CH2200-20S，CH2200-25S，CH2200-30S，CH2200-40S，CH2200-45S，CH2200-50S，CH2200-60S，CH2200-70S，CH2200-80S，CH2200-90S，CH2200-100S，CH2200-120S，CH2200-140S，CH2200-150S，CH2200-160S，CH2200-180S，CH2200-200S，CH2200-250-1800S

3.7KW  5HP：CH3700-3S，CH3700-5S，CH3700-10S

臺灣晟邦直流電機CH3700-15S，CH3700-20S，CH3700-25S，CH3700-30S，CH3700-40S，CH3700-45S，CH3700-50S，CH3700-60S，CH3700-70S，CH3700-80S，

臺灣晟邦馬達減速機CH3700-90S，CH3700-100S，CH3700-120S，CH3700-140S，CH3700-150S，CH3700-160S，CH3700-180S，CH3700-200S，CH3700-250-1800S

適用電壓：三相50HZ（220V/230V/240V/380V/400V/415V/440V）
      三相60HZ （220V/240V/380V/415V/440V/電話V600V）
      單相50HZ（ 110v/115v/200v/220V/230V）
      單相60HZ（ 110V/220V/240V）
選配附件：DC-90V剎車器、SYB手釋放剎車器、強制風扇、等
特點及性能：項目：三相交流馬達。（單相交流馬達）   保護等級：全密閉外扇型IP-54。 （半密閉外扇型）  外殼：0.1-3.7KW,鋁合金/鐵殼。 （0.1-1.5KW鋁合金/鐵殼）

啟動方式：全壓起動。（0.1-0.2KW運轉電容起動0.4-1.5KW起動電容+離心開關）

 定格：連續運轉。   絕緣等級：F-級絕緣。

適用環境:溫度-10℃TO+40℃；濕度90％以下。  適用極數：2P、4P、6P、8P。   輸出轉數(4P)：50HZ=電話轉；60HZ=電話轉。（50HZ=電話轉；60HZ=電話轉）

依據標準：國際/標準IEC-34,CNS-10919ACCORDKNG TO IEC-34,CNS-10919海拔：1000公尺UNDER 1000 M   接線盒：采用IP55級防水型鋁合金接線盒

所代理品牌：臺灣CPG城邦減速機、集優質的產品來滿足您的要求。

本公司熱忱服務于華夏大小廠商，本著“質量第一、信譽第一、客戶第一、薄利多銷”的宗旨。謁誠為您提供優質的產品和完善的售后服務。



歡迎貴司選用我公司優秀產品，18620009778 謝謝！
