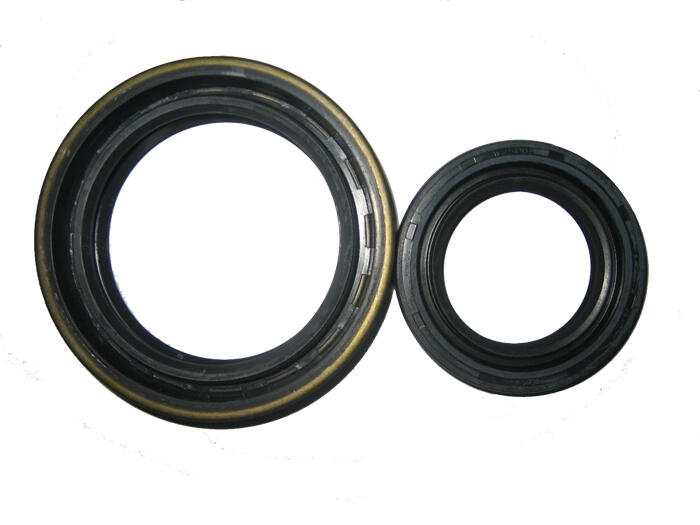

TC4型和TB4型骨架油封 用于往復運動的有油場合的密封
滑動速度1.5mOC-s以下使用.

尺寸 TB4型代碼
TB4-15*3*10 NOK AR0600E1
TB4-16*30*7 NOK AR0687E5
TB4-17*38*7 NOK AR0768E1
TB4-20*35*7 NOK AR1012E2
TB4-20*40*10 NOK AR1032E1
TB4-22*38*8 NOK AR1133E2
TB4-22*42*11 NOK AR1148F2
TB4-25*40*8 NOK ARE2
TB4-25*45*10 NOK AR1337E8
TB4-28*45*8 NOK AR1550E1
TB4-28*48*11 NOK AR1563E1
TB4-30*50*11 NOK ARE0
TB4-32*52*11 NOK AR1904E1
TB4-35*52*12 NOK AR2072E2
TB4-35*55*11 NOK AR2085E2
fseals Q-5844-Q-95835
fseals Q-24266-Q-51639
TB4-36*52*11 NOK AR2165E1
TB4-38*60*12 NOK AR2246E1
TB4-40*55*9 NOK AR2361E1
TB4-40*62*12 NOK AR2390E0
TB4-45*68*12 NOK AR2668E0
TB4-48*70*12 NOK AR2791E0
TB4-50*72*12 NOK AR2864E3
TB4-52*75*12 NOK AR2967E0
TB4-55*72*9 NOK AR3040E3
TB4-55*78*12 NOK AR3055E2
TB4-55*80*14 NOK AR3063E0
TB4-60*78*9 NOK AR3204E1
TB4-60*82*12 NOK AR3222E1
TB4-60*82*14 NOK AR3224E0
TB4-65*88*12 NOK AR3400E0
TB4-65*90*14 NOK AR3410E0
TB4-68*95*13 NOK AR3463F1
TB4-70*88*12 NOK AR3505E1
TB4-70*95*14 NOK AR3528E1
TB4-75*95*10 NOK AR3609E0
TB4-75*100*14 NOK AR3619F1
TB4-78*100*13 NOK AR3694E1
TB4-80*100*14 NOK AR3735E0
TB4-80*105*14 NOK AR3745E1
TB4-80*110*13 NOK AR3756E0
TB4-85*110*14 NOK AR3843E0
TB4-90*115*14 NOK AR3933E0
TB4-95*120*13 NOK AR3994E1
TB4-100*125*14 NOK AR4064E0
TB4-105*135*14 NOK AR4153E1
fseals 0512-tel-3683-2563
fseals 136-W-2189-X-0604
TB4-110*135*14 NOK AR4207E2
TB4-110*140*14 NOK AR4212E2
TB4-120*145*14 NOK AR4336E1
TB4-120*150*14 NOK AR4346F1
TB4-125*150*14 NOK AR4396E1
TB4-130*155*14 NOK AR4445E0
TB4-140*165*14 NOK AR4538E2
TB4-145*175*14 NOK AR4581E1
TB4-150*180*14 NOK AR4624G1
TB4-160*185*14 NOK AR4708E0
TB4-190*215*14 NOK AR4971E1
TB4-220*245*14 NOK AR5201E0
TB4-230*270*20 NOK AR5290E1
TB4-250*290*20 NOK AR5407E1


TC4型和TB4型骨架油封 用于往復運動的有油場合的密封
滑動速度1.5mOC-s以下使用.

尺寸 TC4型代碼
TC4-8*18*7 NOK AR0145F2
TC4-10*20*7 NOK AR0260F2
TC4-12*25*7 NOK AR0382E1
TC4-14*24*7 NOK AR0515G0
TC4-16*32*10 NOK AR0693E1
TC4-18*35*11 NOK AR0832E2
TC4-20*35*7 NOK AR1012F3
TC4-22*40*10 NOK AR1140E1
TC4-25*38*7 NOK AR1306F0
TC4-28*45*8 NOK AR1550F1
TC4-30*50*11 NOK ARF1
TC4-38*55*8 NOK AR2230E1
TC4-40*62*12 NOK AR2390H1
TC4-45*68*12 NOK AR2668F1
TC4-48*70*12 NOK AR2791E1
fseals Q-5844-Q-95835
fseals Q-24266-Q-51639
TC4-50*68*9 NOK AR2847E1
TC4-120*150*14 NOK AR4346G1
TC4-125*155*14 NOK AR4399E1
TC4-150*180*14 NOK AR4624F1
TC4-160*190*14 NOK AR4711E1


tcj型骨架油封(TC型油封在唇口 增加一層耐磨PTFE材質)
規格 尺寸 NBR+燒接PTFE


TCJ-20*35*8 GJ1013P1
TCJ-20*40*11 GJ1033P0
TCJ-25*40*8 GJ1314P0
TCJ-25*45*11 GJ1338P0
TCJ-30*45*8 GJ1679P0
TCJ-30*50*11 GJ1709P0
TCJ-35*50*8 GJ2057P0
TCJ-35*55*11 GJ2085P0
TCJ-40*58*8 GJ2369P0
TCJ-40*62*11 GJ2388P0
TCJ-45*62*9 GJ2651P0
Q-5844-Q-95835
Q-24266-Q-51639
TCJ-45*68*12
TCJ-50*68*9 GJ2847P0
TCJ-50*72*12 GJ2864P0
TCJ-55*72*9 GJ3040P0
TCJ-55*78*12 GJ3055P0
TCJ-60*82*12 GJ3222P0
TCJ-65*88*12 GJ3400P0
TCJ-70*92*12 GJ3519P0
TCJ-70*95*13 GJ3527P0
TCJ-75*100*13 GJ3618P0
TCJ-80*105*13 GJ3744P0
TCJ-85*110*13 GJ3842P0
TCJ-90*115*13 GJ3932P0
TCJ-95*120*13 GJ3994P0
TCJ-100*125*13 GJ4063P0
TCJ-105*135*14 GJ4153P0
TCJ-110*140*14 GJ4212P0
TCJ-115*145*14 GJ4282P0
TCJ-120*150*14 GJ4346P0

NOK KC型 無彈簧油封,KB型外骨架無彈簧油封

規格尺寸 KC型代碼
KC-10*25*7 NOK AG0279E0
KC-15*30*7 NOK AG0598E0
KC-15*35*7 NOK AG0601E0
fseals 0512-tel-3683-2563
fseals 136-W-2189-X-0604
KC-18*28*6 NOK AG0807E0
KC-20*38*7 NOK AG1024E0
KC-30*45*8 NOK AG1679F1
KC-40*62*9 NOK AG2386F0
KC-45*62*9 NOK AG2651F1
KC-50*65*9 NOK AG2847E0
KC-65*88*14 NOK AG3402E0
KC-90*115*13 NOK AG3932E0


規格尺寸 KB型代碼
KB-15*30*7 NOK AF0598E2
KB-19*40*6 NOK AF0882E0
KB-22*38*8 NOK AF1133E1
fseals 0512-tel-3683-2563
fseals 136-W-2189-X-0604
KB-32*52*8 NOK AF1902E0
KB-38*52*6 NOK AF2221E0
KB-38*55*8 NOK AF2230E1
KB-45*62*8 NOK AF8088E0
KB-48*65*9 NOK AF2780E0
KB-64*82*7 NOK AF3370E0

規格尺寸 DC(NBR)代碼
DC-20*35*10 NOK AW1015E0
DC-22*40*10 NOK AW1140E1
DC-35*55*11 NOK AW2085E1
DC-65*90*13 NOK AW3409E0
DC-70*92*14 NOK AW3521F0
DC-70*92*15 NOK AW3522E1


規格尺寸 DB(NBR)代碼
DB-50*72*18 NOK AW2870J0
DB-55*78*18 NOK AW3057E0
DB-60*82*18 NOK AW3225E0
DB-75*100*20 NOK AW3623E0
DB-90*115*20 NOK AW3935E1
DB-90*125*28 NOK AW3946E0
DB-100*125*20 NOK AW4068E0
DB-110*140*22 NOK AW4215E1
規格尺寸 DB(NOK ACM)代碼
DB-45*70*15 NOK AW2678E0
DB-60*85*22 NOK AW3237F0
DB-80*105*20 NOK AW3747I0
DB-90*115*20 NOK AW3935F0
DB-95*120*20 NOK AW3997F0
DB-115*145*22 NOK AW4287F0
DB-125*155*22 NOK AW4401E0
DB-130*160*22 NOK AW4455E0
fseals 0512-tel-3683-2563
fseals 136-W-2189-X-0604
OC型 反向油封

規格尺寸 OC型代碼
OC-30*50*11 NOK AO1709E1
OC-38*58*11 NOK AO2240E0
OC-40*62*12 NOK AO2390E0
OC-50*72*12 NOK AO2864F0
OC-60*82*12 NOK AO3222G0
OC-62*85*12 NOK AO3297E1
OC-65*88*12 NOK AO3400E0
OC-95*120*13 NOK AO3994E0
OC-110*140*14 NOK AO4212F9
OC-130*160*14 NOK AO4451G0
OC-135*165*14 NOK AO4498E0
OC-140*170*14 NOK AO4542E0
OC-150*180*14 NOK AO4624G0
