產品慨述

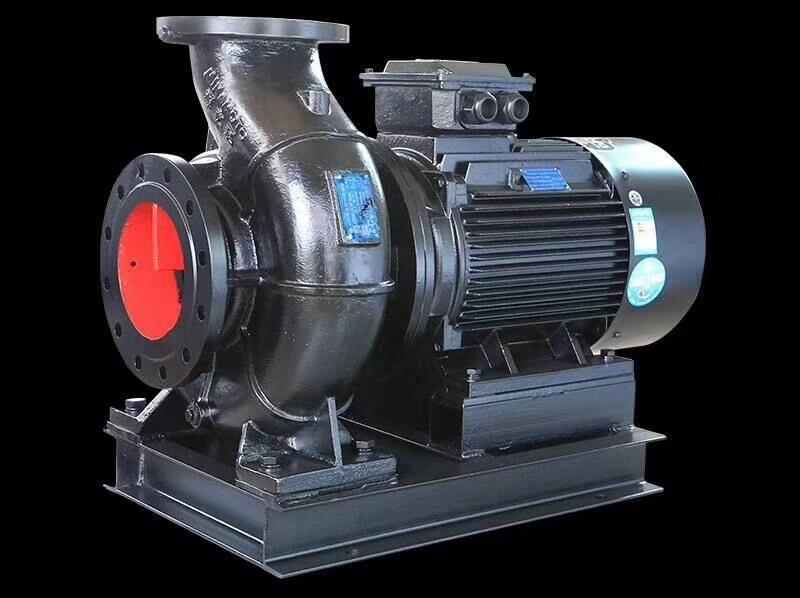

KTX型泵綜合了KTB空調泵和KTZ直聯泵的特點，并在結構材料選用和軸承、軸封等方面作了改進，其經濟技術指標達到國內外同類型產品水平。該型泵為單級單吸臥式離心泵，體積小，重量輕、效率高、噪聲低、結構合理、通用性好、可用性好、可靠性高、檢維修護方便
KTX型泵適用于中央空調冷卻系統、水廠供水、消防、管路增壓、游泳池供水、噴泉供水、高樓給水傳送介質清水或物理化學性質類似清水的液體。
技術參數
進口口徑：125～250（㎜）
流量范圍：60～720（m3/h）
揚程范圍：12.5～52（m）
配套功率：5.5～110（kW）
轉 速：1450/1480（r/min）
介質溫度： ≦80（℃）
環境溫度 ：＜40℃
型號意義
結構特點
·直聯式結構，其優點是安裝、檢修方便、檢修時不動泵體及進出水管，只需移動電動機，即可取出葉輪等部件進行檢修。
·為了平衡泵的軸向力，采用平衡孔結構。
·采用耐磨機械密封裝置，保證運行穩定，可靠，壽命長。
·采用精密鑄造葉輪，高強度軸以及配套進口軸承。
·為確保產品高質量，葉輪材質分耐磨鑄鐵或鑄銅，用戶可根據使用情況選用（訂貨時說明）。
性能參數
|
型號 |
流量 |
揚程 |
轉速 |
功率（Kw) |
效率 |
（NPSH）r |
吐出錐管口徑 |
||
|
（m3/h） |
（L/s) |
(m) |
(r/min) |
軸功率 |
配用功率 |
（%） |
(m) |
（mm) |
|
|
KTX125-100-200 |
60 100 120 |
16.7 27.8 33.3 |
14.5 12.5 11.0 |
1450 |
3.8 4.4 4.7 |
7.5 |
26 76 75 |
2.5 2.5 3.0 |
100-125 |
|
KTX125-100-200A |
56.0 93.5 112.0 |
15.6 26.0 31.1 |
12.8 11.0 9.7 |
1450 |
3.1 3.7 3.9 |
5.5 |
62 76 75 |
2.5 2.5 3.0 |
100-125 |
|
KTX125-100-250 |
60 100 120 |
16.7 27.8 33.3 |
21.5 20.0 18.5 |
1450 |
5.5 7.1 7.8 |
11 |
62 76 77 |
2.5 2.5 3.0 |
100-125 |
|
KTX125-100-250A |
56.0 93.5 112.0 |
15.6 26 31.1 |
18.8 17.5 16.2 |
1450 |
4.5 5.8 6.4 |
7.5 |
63 76 77 |
2.5 2.5 3.0 |
100-125 |
|
KTX125-100-250B |
52.2 86.5 104 |
14.5 24 28.9 |
16.0 15.0 13.9 |
1450 |
3.7 4.8 5.1 |
5.5 |
62 75 76 |
2.5 2.5 3.0 |
100-125 |
|
KTX125-100-315 |
60 100 120 |
16.7 27.8 33.3 |
33.5 32.0 30.5 |
1450 |
9.4 11.9 13.5 |
15 |
58 73 74 |
2.5 2.5 3.0 |
100-125 |
|
型號 |
流量 |
揚程 |
轉速 |
功率（Kw) |
效率 |
（NPSH）r |
吐出錐管口徑 |
||
|
（m3/h） |
（L/s) |
(m) |
(r/min) |
軸功率 |
配用功率 |
（%） |
(m) |
（mm) |
|
|
KTX125-100-315A |
57.4 95.5 114.0 |
15.9 26.5 31.7 |
30.5 28.5 27.8 |
1450 |
8.2 10.3 11.7 |
15 |
58 73 74 |
2.5 2.5 3.0 |
100-125 |
|
KTX125-100-315B |
54.6 90.8 108.9 |
15.1 25.2 30.3 |
27.7 26.4 25.8 |
1450 |
7.2 9.1 10.5 |
11 |
57 72 73 |
2.5 2.5 3.0 |
100-125 |
|
KTX125-100-400 |
60 100 120 |
16.7 27.8 33.3 |
52.0 50.0 48.5 |
1480 |
16.1 21.0 23.6 |
30 |
53 65 67 |
2.5 2.5 3.0 |
100-125 |
|
KTX125-100-400A |
56 .0 93.6 112.4 |
15.6 26.0 31.2 |
46 44 43 |
148 |
13.2 17.5 19.6 |
22 |
53 64 67 |
2.5 2.5 3.0 |
100-125 |
|
KTX125-100-400B |
52.2 88.0 105.0 |
14.5 24.4 29.2 |
40.0 38.0 37.2 |
1480 |
11.2 14.6 16.4 |
18.5 |
51 62.8 65 |
2.5 2.5 3.0 |
100-125 |
|
KTX125-100-210 |
90 142 170 |
25 .0 39.4 47.2 |
15.0 13.0 11.5 |
1480 |
5.2 6.3 6.9 |
11 |
70 79 77 |
2.5 2.5 3.4 |
100-125 |
|
KTX125-100-260 |
95 148 175 |
26.4 41.1 48.6 |
24.5 22.0 20.0 |
1480 |
9.2 11.4 12.5 |
15 |
69 78 76 |
2.3 2.6 3.5 |
100-125 |
|
KTX125-100-320 |
80 146 165 |
22.2 40.6 45.8 |
37.5 34 29 |
1480 |
12.7 16.7 18.4 |
22 |
65 75 72 |
2.0 2.0 2.3 |
100-125 |
|
KTX125-100-320A |
78 142 165 |
21.7 39.4 45.8 |
32 28 25 |
1480 |
10.8 14.8 16.3 |
18.5 |
63 73 69 |
2.0 2.0 2.3 |
100-125 |
|
KTX125-100-410 |
90 150 176 |
25.0 41.7 48.9 |
57.0 52.0 48.5 |
1480 |
24.1 31.24 34.9 |
45 |
58 68 67 |
2.3 2.5 3.2 |
100-125 |
|
KTX125-100-410A |
87 144 172 |
24.2 40.0 47.8 |
52 48 44 |
1480 |
22.0 28.5 31.7 |
37 |
56 66 65 |
2.3 2.5 3.2 |
100-125 |
|
KTX125-100-410B |
83 140 165 |
23.1 38.9 45.8 |
45 40 38 |
1480 |
18.8 23.8 27.1 |
30 |
54 64 63 |
2.3 25 3.2 |
100-125 |
|
KTX150-125-250 |
120 200 240 |
33.3 55.6 66.7 |
22.5 20.0 17.5 |
1480 |
10.4 13.5 14.7 |
18.5 |
71 81 78 |
3.0 3.0 3.5 |
125-150 |
|
KTX150-125-250A |
112 187 224 |
31.1 51.9 62.2 |
19.5 17.5 15.2 |
1480 |
8.7 11.3 12.3 |
15 |
68.0 77.9 75.3 |
3.0 3.0 2.5 |
125-150 |
|
KTX150-125-260 |
144 240 288 |
40.0 66.7 80.0 |
23.5 21.0 18.1 |
1480 |
13.2 16.9 18.9 |
22 |
70 81 78 |
2.3 2.6 3.2 |
125-150 |
|
型號 |
流量 |
揚程 |
轉速 |
功率（Kw) |
效率 |
（NPSH）r |
吐出錐管口徑 |
||
|
（m3/h） |
（L/s) |
(m) |
(r/min) |
軸功率 |
配用功率 |
（%） |
(m) |
（mm) |
|
|
KTX150-125-260A |
134 230 280 |
37.2 63.9 77.8 |
21.0 18.5 16.5 |
1480 |
11.43 14.7 16.6 |
18.5 |
67 79 76 |
2.3 2.6 3.2 |
125-150 |
|
KTX150-125-315 |
120 200 240 |
33.3 55.6 66.7 |
34 32 29 |
1480 |
15.8 22.1 23.7 |
30 |
70 79 80 |
2.5 2.5 3.0 |
125-150 |
|
KTX150-125-315A |
112.0 187.0 224.6 |
31.1 51.9 62.4 |
30 28 25 |
1480 |
13.1 18.1 19.1 |
22 |
70 79 80 |
2.5 2.5 3.0 |
125-150 |
|
KTX150-125-315B |
104 173 208 |
28.9 48.1 57.8 |
25.5 24.0 21.8 |
1480 |
10.5 14.5 15.6 |
18.5 |
69 78 79 |
2.5 2.5 3.0 |
125-150 |
|
KTX150-125-320 |
144 240 288 |
40.0 66.7 80.0 |
34 32 28 |
1480 |
19.1 26.5 27.5 |
30 |
70 79 80 |
2.5 2.5 3.0 |
125-150 |
|
KTX150-125-320A |
134 230 270 |
37.2 63.9 75.0 |
29 26 22 |
1480 |
15.8 20.6 21.0 |
22 |
67 79 77 |
2.5 2.5 3.0 |
125-150 |
|
KTX150-125-350 |
144 240 288 |
40.0 66.7 80.0 |
38 36 32 |
1480 |
21.2 30.2 32.1 |
37 |
70 78 79 |
2.0 2.8 3.5 |
125-150 |
|
KTX150-125-400 |
120 200 240 |
33.3 55.6 66.7 |
53 50 46 |
1480 |
27.9 36.3 40.6 |
45 |
62 75 74 |
2.0 2.8 3.5 |
125-150 |
|
KTX150-125-400A |
112 187 225 |
31.1 51.9 62.5 |
47 44 40 |
1480 |
23.2 30.0 33.1 |
37 |
62 75 74 |
2.0 2.8 3.5 |
125-150 |
|
KTX150-125-400B |
105 173 210 |
29.2 48.1 58.3 |
40 38 35 |
1480 |
18.7 24.4 27.4 |
30 |
61 74 73 |
2.0 2.8 3.5 |
125-150 |
|
KTX150-125-410 |
144 245 300 |
40.0 68.1 83.3 |
55 50 44 |
1480 |
32.7 43.9 49.9 |
55 |
66 76 72 |
2.2 2.4 3.2 |
125-150 |
|
KTX150-125-410A |
144 245 300 |
40.0 68.1 83.3 |
52 45 38 |
1480 |
31.37 40.0 43.7 |
45 |
65 75 71 |
2.2 2.4 3.2 |
125-150 |
|
KTX200-150-260 |
189 315 378 |
52.5 87.5 105 |
22.6 20.0 17.5 |
1480 |
16.6 20.5 22.2 |
30 |
70 83.5 81 |
2.7 3.0 4.0 |
150-200 |
|
KTX200-150-260A |
200 280 340 |
55.6 77.8 94.4 |
18.8 16.2 14.0 |
1480 |
14.8 15.1 16.2 |
22 |
69 82 80 |
2.7 3.0 4.0 |
150-200 |
|
KTX200-150-250 |
240 400 460 |
66.7 111.1 127.8 |
20.6 20.0 17.2 |
1480 |
21.1 26.7 27.3 |
37 |
70 83 79 |
3.6 4.6 4.9 |
150-200 |
|
型號 |
流量 |
揚程 |
轉速 |
功率（Kw) |
效率 |
（NPSH）r |
吐出錐管口徑 |
||
|
（m3/h） |
（L/s) |
(m) |
(r/min) |
軸功率 |
配用功率 |
（%） |
(m) |
（mm) |
|
|
KTX200-150-250A |
225 374 431 |
62.5 103.9 119.7 |
19.4 17.5 15.6 |
1480 |
16.7 21.8 23.5 |
30 |
71 82 78 |
3.0 4.0 4.5 |
150-200 |
|
KTX200-150-320 |
189 315 378 |
52.5 87.5 105.0 |
36.0 32.0 29.4 |
1480 |
25.6 33.5 37.6 |
45 |
72.5 82 80.5 |
2.5 3.2 4.2 |
150-200 |
|
KTX200-150-320A |
200 280 340 |
55.6 77.8 94.4 |
33 28 25 |
1480 |
25.3 26.4 29.3 |
37 |
71 81 79 |
2.5 3.2 4.2 |
150-200 |
|
KTX200-150-340 |
189 315 378 |
52.5 87.5 105.0 |
38 36 34 |
1480 |
27.9 38.1 42.7 |
45 |
70 79 78 |
2.5 3.2 4.2 |
150-200 |
|
KTX200-150-315 |
240 400 460 |
66.7 111.1 127.8 |
37.0 32.0 28.5 |
1480 |
34.6 42.5 44.6 |
55 |
70 82 80 |
3.0 3.5 4.0 |
150-200 |
|
KTX200-150-315A |
226 374 423 |
62.8 103.9 120.0 |
33 28 25 |
1480 |
29.0 35.0 41.6 |
45 |
70 82 80 |
3.0 3.5 4.0 |
150-200 |
|
KTX200-150-315B |
210 350 403 |
58.3 97.2 112.0 |
27.5 24.0 21.2 |
1480 |
23.2 28.6 30.0 |
37 |
67.4 79.0 77.5 |
3.0 3.5 4.0 |
150-200 |
|
KTX200-150-350 |
380 460 520 |
105.5 127.8 144.4 |
38 36 32 |
1480 |
53.8 55.1 56.6 |
75 |
73 82 80 |
3.0 3.5 4.0 |
150-200 |
|
KTX200-150-315 |
380 460 520 |
105.5 127.8 144.4 |
34 32 28 |
1480 |
47.5 49.5 50.2 |
55 |
71 81 79 |
3.0 3.5 4.0 |
150-200 |
|
KTX200-150-400 |
240 400 460 |
66.7 111.1 127.8 |
55 50 45 |
1480 |
48.6 67.2 74.2 |
90 |
74 81 76 |
3.0 3.8 4.5 |
150-200 |
|
KTX200-150-400A |
228 380 437 |
63.3 105.6 121.4 |
49.0 44.5 40.0 |
1480 |
41.8 57.9 63.8 |
75 |
72.7 79.5 75.5 |
3.0 3.8 4.5 |
150-200 |
|
KTX200-150-400B |
210 340 401 |
58.3 94.4 111.4 |
42 38 34 |
1480 |
32.8 45.1 48.9 |
55 |
73 80 76 |
3.0 3.8 4.5 |
150-200 |
|
KTX200-150-410 |
195 315 378 |
54.2 87.5 105.0 |
55 52 46 |
1480 |
37.4 52.3 59.2 |
75 |
78 82 80 |
2.5 3.5 4.0 |
150-200 |
|
KTX200-150-410A |
190 300 360 |
52.8 83.3 100.0 |
50 46 41 |
1480 |
33.6 48.4 50.8 |
55 |
77 81 79 |
2.5 3.5 4.0 |
150-200 |
|
KTX250-200-300 |
486 630 720 |
135 175 200 |
30 26 22 |
1480 |
50.9 51.8 53.2 |
55 |
78 85 81 |
5.5 6.7 7.2 |
200-250 |
|
型號 |
流量 |
揚程 |
轉速 |
功率（Kw) |
效率 |
（NPSH）r |
吐出錐管口徑 |
||
|
（m3/h） |
（L/s) |
(m) |
(r/min) |
軸功率 |
配用功率 |
（%） |
(m) |
（mm) |
|
|
KTX250-200-300A |
432 560 650 |
120.0 155.6 180.6 |
26 21 17 |
1480 |
38.2 39.1 41.8 |
45 |
80 82 72 |
5.5 6.7 7.2 |
200-250 |
|
KTX250-200-400 |
486 630 720 |
135 175 200 |
50 45 38 |
1480 |
82.7 91.9 95.5 |
110 |
80 85 78 |
5.0 6.3 6.8 |
200-250 |
|
KTX250-200-400A |
432 558 710 |
120.0 155.0 197.2 |
43 38 32 |
1480 |
63.2 68.7 81.7 |
90 |
80 84 80 |
5.0 6.3 6.8 |
200-250 |
|
KTX250-200-400B |
428 550 700 |
118.9 152.8 194.4 |
37 32 26 |
1480 |
54.2 58.4 63.5 |
75 |
78 82 78 |
5.0 6.3 6.8 |
200-250 |
外形及安裝尺寸
|
法蘭尺寸表 |
|
|
|
|
|
|
|
|
|
|
||||||
|
型號Model |
進口法蘭 |
出口法蘭 |
||||||||||||||
|
DN1 |
D1 |
D |
n-?d1 |
t1 |
DN2 |
D2 |
D3 |
n-?d2 |
t2 |
|||||||
|
KTX125-100-200、A |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
?100 |
?180 |
?220 |
8-?17.5 |
24 |
||||||
|
KTX125-100-250、A、B |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
?100 |
?180 |
?220 |
8-?17.5 |
24 |
||||||
|
KTX125-100-315、A、B |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
?100 |
?180 |
?220 |
8-?17.5 |
24 |
||||||
|
KTX125-100-400、A、B |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
?100 |
?180 |
?220 |
8-?17.5 |
24 |
||||||
|
KTX125-100-210 |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
?100 |
?180 |
?220 |
8-?17.5 |
24 |
||||||
|
KTX125-100-260 |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
?100 |
?180 |
?220 |
8-?17.5 |
24 |
||||||
|
KTX125-100-320、A |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
?100 |
?180 |
?220 |
8-?17.5 |
24 |
||||||
|
KTX125-100-410、A、B |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
?100 |
?180 |
?220 |
8-?17.5 |
24 |
||||||
|
KTX150-125-250、A |
?150 |
?240 |
?285 |
8-?22 |
30 |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
||||||
|
KTX150-125-260、A |
?150 |
?240 |
?285 |
8-?22 |
30 |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
||||||
|
型號Model |
進口法蘭 |
出口法蘭 |
||||||||||||||
|
DN1 |
D1 |
D |
n-?d1 |
t1 |
DN2 |
D2 |
D3 |
n-?d2 |
t2 |
|||||||
|
KTX150-125-315、A、B |
?150 |
?240 |
?285 |
8-?22 |
30 |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
||||||
|
KTX150-125-320、A |
?150 |
?240 |
?285 |
8-?22 |
30 |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
||||||
|
KTX150-125-400、A、B |
?150 |
?240 |
?285 |
8-?22 |
30 |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
||||||
|
KTX150-125-410、A |
?150 |
?240 |
?285 |
8-?22 |
30 |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
||||||
|
KTX150-125-350 |
?150 |
?240 |
?285 |
8-?22 |
30 |
?125 |
?210 |
?250 |
8-?17.5 |
26 |
||||||
|
KTX200-150-250、A |
?200 |
?295 |
?340 |
12-?22 |
30 |
?150 |
?240 |
?285 |
8-?22 |
30 |
||||||
|
KTX200-150-260、A |
?200 |
?295 |
?340 |
12-?22 |
30 |
?150 |
?240 |
?285 |
8-?22 |
30 |
||||||
|
KTX200-150-315、A、B |
?200 |
?295 |
?340 |
12-?22 |
30 |
?150 |
?240 |
?285 |
8-?22 |
30 |
||||||
|
KTX200-150-320、A |
?200 |
?295 |
?340 |
12-?22 |
30 |
?150 |
?240 |
?285 |
8-?22 |
30 |
||||||
|
KTX200-150-340 |
?200 |
?295 |
?340 |
12-?22 |
30 |
?150 |
?240 |
?285 |
8-?22 |
30 |
||||||
|
KTX200-150-350、A |
?200 |
?295 |
?340 |
12-?22 |
30 |
?150 |
?240 |
?285 |
8-?22 |
30 |
||||||
|
KTX200-150-400、A、B |
?200 |
?295 |
?340 |
12-?22 |
30 |
?150 |
?240 |
?285 |
8-?22 |
30 |
||||||
|
KTX200-150-410、A |
?200 |
?295 |
?340 |
12-?22 |
30 |
?150 |
?240 |
?285 |
8-?22 |
30 |
||||||
|
KTX250-200-300、A |
?250 |
?355 |
?405 |
12-?26 |
35 |
?200 |
?295 |
?340 |
12-?22 |
30 |
||||||
|
KTX250-200-400、A、B |
?250 |
?355 |
?405 |
12-?26 |
35 |
?200 |
?295 |
?340 |
12-?22 |
30 |
||||||
外形及安裝尺寸表
|
型號Model |
L |
L1 |
L2 |
L3 |
L4 |
B1 |
B2 |
h1 |
h2 |
h3 |
a |
b |
n-?d |
|
KTX125-100-200 |
690 |
510 |
80 |
350 |
0 |
360 |
400 |
310 |
200 |
280 |
125 |
135 |
4–?22 |
|
KTX125-100-200A |
650 |
510 |
80 |
350 |
0 |
360 |
400 |
310 |
200 |
280 |
125 |
135 |
4–?22 |
|
KTX125-100-250 |
815 |
650 |
110 |
450 |
30 |
400 |
440 |
335 |
225 |
280 |
140 |
170 |
4–?22 |
|
KTX125-100-250A |
705 |
510 |
80 |
350 |
0 |
400 |
440 |
335 |
225 |
280 |
140 |
135 |
4–?22 |
|
KTX125-100-250B |
665 |
510 |
80 |
350 |
0 |
400 |
440 |
335 |
225 |
280 |
140 |
135 |
4–?22 |
|
KTX125-100-315 |
870 |
650 |
110 |
450 |
30 |
400 |
440 |
360 |
250 |
315 |
140 |
170 |
4–?22 |
|
KTX125-100-315A |
870 |
650 |
110 |
450 |
30 |
400 |
440 |
360 |
250 |
315 |
140 |
170 |
4–?22 |
|
KTX125-100-315B |
815 |
650 |
110 |
450 |
30 |
400 |
440 |
360 |
250 |
315 |
140 |
170 |
4–?22 |
|
KTX125-100-400 |
985 |
760 |
130 |
500 |
30 |
500 |
540 |
390 |
280 |
355 |
140 |
185 |
4–?22 |
|
KTX125-100-400A |
955 |
725 |
130 |
500 |
30 |
500 |
540 |
390 |
280 |
355 |
140 |
185 |
4–?22 |
|
KTX125-100-400B |
915 |
725 |
130 |
500 |
30 |
500 |
540 |
390 |
280 |
355 |
140 |
185 |
4–?22 |
|
KTX125-100-210 |
825 |
650 |
110 |
450 |
30 |
400 |
440 |
335 |
225 |
280 |
150 |
170 |
4–?22 |
|
KTX125-100-260 |
880 |
650 |
110 |
450 |
30 |
400 |
440 |
335 |
225 |
280 |
150 |
170 |
4–?22 |
|
KTX125-100-320 |
955 |
710 |
110 |
500 |
30 |
400 |
440 |
360 |
250 |
315 |
140 |
185 |
4–?22 |
|
KTX125-100-320A |
915 |
710 |
110 |
500 |
30 |
400 |
440 |
360 |
250 |
315 |
140 |
185 |
4–?22 |
|
KTX125-100-410 |
1020 |
780 |
130 |
550 |
30 |
500 |
540 |
398 |
280 |
355 |
140 |
174 |
4–?22 |
|
KTX125-100-410A |
990 |
760 |
130 |
550 |
30 |
500 |
540 |
398 |
280 |
355 |
140 |
174 |
4–?22 |
|
KTX125-100-410B |
975 |
760 |
130 |
500 |
30 |
500 |
540 |
390 |
280 |
355 |
140 |
174 |
4–?22 |
|
KTX150-125-250 |
915 |
710 |
110 |
500 |
30 |
400 |
440 |
360 |
250 |
355 |
140 |
185 |
4–?22 |
|
KTX150-125-250A |
870 |
650 |
110 |
450 |
30 |
400 |
440 |
360 |
250 |
355 |
140 |
170 |
4–?22 |
|
KTX150-125-260 |
955 |
710 |
110 |
500 |
30 |
400 |
440 |
360 |
250 |
355 |
140 |
185 |
4–?22 |
|
KTX150-125-260A |
915 |
710 |
110 |
500 |
30 |
400 |
440 |
360 |
250 |
355 |
140 |
185 |
4–?22 |
|
KTX150-125-315 |
980 |
760 |
130 |
500 |
30 |
500 |
540 |
390 |
280 |
355 |
140 |
180 |
4–?22 |
|
KTX150-125-315A |
950 |
725 |
130 |
500 |
30 |
500 |
540 |
390 |
280 |
355 |
140 |
180 |
4–?22 |
|
KTX150-125-315B |
910 |
725 |
130 |
500 |
30 |
500 |
540 |
390 |
280 |
355 |
140 |
180 |
4–?22 |
|
KTX150-125-320 |
980 |
760 |
130 |
500 |
30 |
500 |
540 |
390 |
280 |
355 |
140 |
180 |
4–?22 |
|
KTX150-125-320A |
950 |
725 |
130 |
500 |
30 |
500 |
540 |
390 |
280 |
355 |
140 |
180 |
4–?22 |
|
型號Model |
L |
L1 |
L2 |
L3 |
L4 |
B1 |
B2 |
h1 |
h2 |
h3 |
a |
b |
n-?d |
|
KTX150-125-400 |
1030 |
790 |
130 |
550 |
30 |
500 |
540 |
425 |
315 |
400 |
140 |
184 |
4–?22 |
|
KTX150-125-400A |
1005 |
760 |
130 |
550 |
30 |
500 |
540 |
425 |
315 |
400 |
140 |
184 |
4–?22 |
|
KTX150-125-400B |
985 |
760 |
130 |
500 |
30 |
500 |
540 |
425 |
315 |
400 |
140 |
184 |
4–?22 |
|
KTX150-125-410 |
1105 |
855 |
130 |
640 |
30 |
500 |
540 |
425 |
315 |
400 |
140 |
191 |
4–?22 |
|
KTX150-125-410A |
1030 |
790 |
130 |
550 |
30 |
500 |
540 |
425 |
315 |
400 |
140 |
184 |
4–?22 |
|
KTX150-125-350 |
1005 |
760 |
130 |
550 |
30 |
500 |
540 |
425 |
315 |
400 |
140 |
184 |
4–?22 |
|
KTX200-150-250 |
1020 |
760 |
130 |
550 |
30 |
500 |
540 |
398 |
280 |
375 |
160 |
185 |
4–?22 |
|
KTX200-150-250A |
1000 |
760 |
130 |
500 |
30 |
500 |
540 |
390 |
280 |
375 |
160 |
180 |
4–?22 |
|
KTX200-150-260 |
1000 |
760 |
130 |
500 |
30 |
500 |
540 |
390 |
280 |
375 |
160 |
180 |
4–?22 |
|
KTX200-150-260A |
970 |
725 |
130 |
500 |
30 |
500 |
540 |
390 |
280 |
375 |
160 |
180 |
4–?22 |
|
KTX200-150-315 |
1145 |
890 |
130 |
640 |
30 |
540 |
580 |
423 |
315 |
400 |
160 |
215 |
4–?22 |
|
KTX200-150-315A |
1055 |
800 |
130 |
550 |
30 |
540 |
580 |
425 |
315 |
400 |
160 |
190 |
4–?22 |
|
KTX200-150-315B |
1025 |
770 |
130 |
550 |
30 |
540 |
580 |
425 |
315 |
400 |
160 |
190 |
4–?22 |
|
KTX200-150-320 |
1055 |
800 |
130 |
550 |
30 |
540 |
580 |
425 |
315 |
400 |
160 |
190 |
4–?22 |
|
KTX200-150-320A |
1025 |
770 |
130 |
550 |
30 |
540 |
580 |
425 |
315 |
400 |
160 |
190 |
4–?22 |
|
KTX200-150-340 |
1055 |
800 |
130 |
550 |
30 |
540 |
580 |
425 |
315 |
400 |
160 |
190 |
4–?22 |
|
KTX200-150-350 |
1205 |
910 |
130 |
640 |
30 |
540 |
580 |
437 |
315 |
450 |
160 |
196 |
4–?22 |
|
KTX200-150-350A |
1130 |
860 |
130 |
640 |
30 |
540 |
580 |
423 |
315 |
450 |
160 |
196 |
4–?22 |
|
KTX200-150-400 |
1255 |
870 |
130 |
640 |
30 |
540 |
580 |
437 |
315 |
450 |
160 |
196 |
4–?22 |
|
KTX200-150-400A |
1205 |
910 |
130 |
640 |
30 |
540 |
580 |
437 |
315 |
450 |
160 |
196 |
4–?22 |
|
KTX200-150-400B |
1130 |
860 |
130 |
640 |
30 |
540 |
580 |
423 |
315 |
450 |
160 |
196 |
4–?22 |
|
KTX200-150-410 |
1205 |
910 |
130 |
640 |
30 |
540 |
580 |
437 |
315 |
450 |
160 |
196 |
4–?22 |
|
KTX200-150-410A |
1130 |
860 |
130 |
640 |
30 |
540 |
580 |
423 |
315 |
450 |
160 |
196 |
4–?22 |
|
KTX250-200-300 |
1210 |
890 |
130 |
640 |
30 |
540 |
580 |
423 |
315 |
435 |
225 |
215 |
4–?22 |
|
KTX250-200-300A |
1120 |
800 |
130 |
550 |
30 |
540 |
580 |
425 |
315 |
435 |
225 |
190 |
4–?22 |
|
KTX250-200-400 |
1465 |
1100 |
130 |
700 |
30 |
620 |
660 |
425 |
315 |
460 |
225 |
208 |
4–?22 |
|
KTX250-200-400A |
1330 |
970 |
130 |
640 |
30 |
540 |
580 |
437 |
315 |
460 |
225 |
208 |
4–?22 |
|
KTX250-200-400B |
1280 |
920 |
130 |
640 |
30 |
540 |
580 |
437 |
315 |
460 |
225 |
208 |
4–?22 |
