NewSonic SonoDur 3

產品價格：￥面議（人民幣）

規格：完善

發貨地：本地至全國

品牌：

最小起訂量：1臺

QQ洽談點擊詢價進入商鋪

深圳市泰立儀器儀表有限公司

誠信商家

會員級別：

認證類型：企業認證

企業證件：通過認證

認證信息：深圳市泰立儀器儀表有限公司

商鋪名稱：深圳市泰立儀器儀表有限公司

聯系人：牟小姐（小姐）

聯系手機：

固定電話：

企業郵箱：taili668@vip.163.com

聯系地址：深圳市龍崗區龍翔大道9009號珠江廣場A2棟13D室

郵編：518000

聯系我時，請說是在焊材網上看到的，謝謝！

商品詳情

品牌：NewSonic	型號：SonoDur 3	加工定制：否
測量范圍：10 – 1999 NV	產品類型：超聲波硬度計	試驗力：100 N
允許高度：164x86x23 mm	重量：0.37 kg

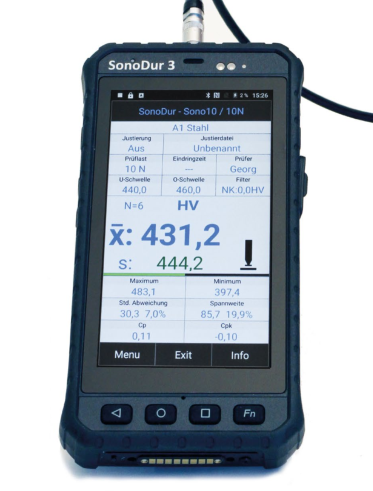

NewSonic SonoDur 3
The New UCI Generation after SonoDur2

Mobile Hardness testing onmetals with UCI * in productionand maintenance. Starting withgoods income inspection untilthe fi nal product is reached.

*Ultrasonic Contact Impedance

Norms: ASTM A 1038 and DIN 50159-1, 2
Conversions: ASTM E 140-13, EN ISO 18265

Multiple Solutions for theSonoDur Family and also forMIC10/MIC20 (by probe retrofi t)

Motor probes (HV 0,1 – HV 0,8): 0.1 kgf, 0.3 kgf, 0.8 kgf
Handheld probes (HV 1 – HV 10): 1 kgf, 3kgf, 5 kgf, 10 kgf

The better Way to Hardness Testing
Rugged, easy to use, fast and precise. Made in Germany.

Instrument Features
? Carrying strap, edge protection, IP65, MIL-810G (vibration, shock, drop)
? Brilliant color display in 5’’, smooth glass shield for easy cleaning
? Direct function access just by touch, intuitive menu control, ideal forMIC10/MIC20 users and others
? No set-up needed at beginning of shift – ready for immediate use

Android Operating System and Data Transfer
? USB: transfer of measurement data in txt-format using thefile explorer
? WLAN: automatic transfer of single values, completed data stets
? Bluetooth: manual transfer of a set of measurement data
?“Unlimited”storage capacity for measurement data and settings

Intelligent Management ofMeasurement Data and Settings
? Simple access to data and qualified back-traceableassessment of results
? File names can be predefined, automatic closingof data sets
?“AllMeas”- summarized list of results in storeddata sets

Reliable MeasurementTechnique with long-Term Stability
Efficient working tool, optimized for the
daily needs of the inspector

Unique
Can be calibrated in full according to
DAKKS after DIN 50159-2 (calibration
curve 150 – through 900 HV, diamond,
nominal test force)

NewSonic SonoDur 3
Measuring Specifications

Measuring principle	UCI Method, corresponds to DIN 50159, ASTM A1038
Test indenter	Vickers diamond 136°
Test loads Newton scale (1kgf = 9.81 N)	Motor probes: 1N (0.1 kgf), 3N (0.3kgf) and 8.6 N (0.9 kgf) Handheld Probes: 10N (1 kgf), 30N (3kgf), 49N (5kgf), 98N(10kgf), (Other test loads on request)
Hardness scales and range (according to relevant standards), in this casetable A1 respectively T1, T2 (low alloy steel). Different measuring ranges are valid for othermaterials. When exceeding the limits theconversion range will be extended. The calcu-lated values are highlighted in red besides theoriginal data in HV. Note: Conversions are acc. to latest ASTM E140-12b?1(2013) und EN ISO 18265:2014. Conversions into tensile strength: 98N (10kgf)test load only.	Vickers Brinell Rockwell Rockwell Rockwell Rockwell Rockwell 5,6 Rockwell (EN ISO 18265 only) Rockwell Knoop (ASTM E140 only) Shore (ASTM E140 only) Tensile strength	HV HB HRB HRC HRE HRF HRA HRD HR45N HK HS MPa	10 – 1999 (9999) 76 – 618 41 – 105 20,3 – 68 70 – 108,5 82,6 – 115,1 60,7 – 8 40,3 – 76,9 19,9 – 75,4 87 – 920 34,2 – 97,3 255 – 2180
Measurement uncertainty*	< 4 % (HV5, HV 10). For other test loads and ranges see table below.
Relative repeatability*	< 5 % (HV5, HV 10). For other test loads and ranges see table below.

* exceeds DIN 50159, dependent on test load and range (see table below). Specifications are valid for 5 measurements usingVickers reference blocks and according to test conditions given in standard DIN 50159.

Hardness scale	Measurement uncertainty [%]				Relative repeatability [%]
Hardness scale	< 250 HV	250 HV - 500HV	500 HV - 800 HV	> 800 HV	< 250 HV	> 250 HV
HV 0,1	5	6	7	8	8	6
HV 0,3	5	6	7	8	8	6
HV 0,8	4	4	5	6	8	6
HV 1	4	4	5	6	8	6

Mechanical and Environmental (Instrument and probe)

Operating time	>10 hours in measurement operation (depending on system performance,temperature and instrument settings), up to 8 hours continuous operation, quick exchangeable battery pack (3.7V 3900mAh LiPolymer)
Operating Temperature	Probe: 0°C to ~ +45°C Instrument: -10° ~ +50°C // Charging +10°C ~ +40°C
Storage Temperature	-20°C ~ +70°C
Humidity	Max. 90%, non-condensing
Dimensions	Instrument ca. 164x86x23 mm, Motor probe ?38mm, L=190 mm Handheld probe ?25 mm, L=176 mm (free length of rod ca. 12,5 mm) Handheld probe ?25 mm, L=207 mm (free length rod ca. 43 mm)
Weight	Instrument ca. 320 gr (incl. battery pack) Handheld probe ca. 280 gr, Motor probe ca. 370 gr

Instrument

Processor and Memory	ARM ® Cortex?-A53 Octa Core 1.3 GHz / System 2GB RAM / storage me mory 16 GB eMMC / Micro SD card 4 GB (up to 32 GB )
Operating system	Android 5.1 (Android 7.0)
Keypad	4 function keys, system touch keyboard
Power	Main battery: 3,7V / 3900mAh, LiPo hard pack, quick exchange Charging time: <3h to 80% capacity (Instrument off) Shelf Hours: Up to 6 months AC Power supply/charger: 90V to 264VAC 50/60Hz to 5VDC
Display	5“ sunlight readable multi touch display (1280x720 pixel), LED-backlight (500 Cd/m2), adjustable
Interfaces	Jack for 5VDC operating/ charging \|Docking connector (charging) USB 2.0 Micro USB (PC) / probe connector Lemo 4 pos. Micro SD-card 4 GB (up to 32 GB) \| 2x SIM card WLAN 802.11 a/b/g/n \| WCDMA/HSDAP/HSPUA, FDD-LTE / TDD-LTE) \| GSM/GPRS/EDGE (b2/b3/b5/b8 \| GPS / AGPS / GLONASS Bluetooth 4.0 (supports BLE mode) \| NFC \| Speaker, microphone
Sensors / Camera / LED	Light sensor, G-sensor, proximity sensor, rear camera 8 mega-pixel, multicolor status LED
IP-Proof	IP65 according IEC 60529 Edition 2.1:2001-02
Drop test	MIL-STD-810G Methode 516.6, 4 ft.
Shock Test	MIL-STD-810G Methode 516.6 Prozedur I
Vibration Test	MIL-STD-810G Methode 514.6 Prozedur I
Instrument Language	D, EN, IT, FR, SP, PL, CZ, CN - more on request

NewSonic SonoDur 3
Scope of delivery
SonoDur3, Hardness Tester with Data Logger and Data Export, Data Transfer to PC (USB, WLANor Bluetooth resp.), incl. SONO3-NG, Power Source, SONO2-NG/USB USB-Cable, SONO2-HM, ca. 1,5 mProbe Connection Cable, SONO3-TK-1, Transportation Case, SONO-CD, Product-USB-Stick, SONO3Protect, Protection Foils

Mandatory accessory
Motor probe or handheld probe respectively
Other accessories
Reference blocks (MPA, company certificate),test stands, guiding harnesses, auxiliary SW.

Example for configurations
