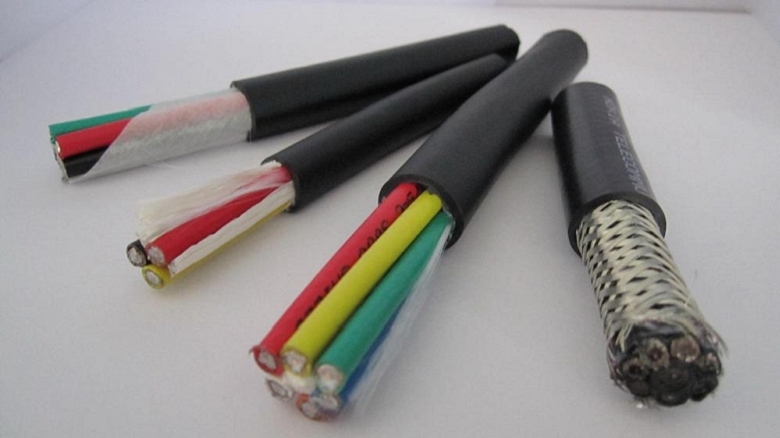

聚氯乙烯/交聯聚乙烯絕緣船用通信電纜 60(0.35mm^2)-250V PVC/XLPE Insulated Shipboard ecommunication Cable |
||||||||||||
|
芯數×標稱截面No. Of cores× nominal cross sectional area (mm2) |
CHV82/DA,SA CHJ86/SC CHJ82/SC CHJ85/SC |
CHVV80/DA,SA CHVV90 /DA,SA CHJV80/SA CHJV90/SA CHJPF80/SC CHJPF90/SC CHJPJ80/SC CHJPJ90/SC |
CHVV82/DA,SA CHVV92/DA，SA CHJV82/SA CHJV92/SA CHJPF86/SC CHJPF96/SC CHJPJ85/SC CHJPJ95/SC |
|||||||||
|
計算外徑 Calculated diameter (mm) |
計算重量Calculated mass (kg/km) |
計算外徑 Calculated diameter (mm) |
計算重量 Calculated mass (kg/km) |
計算外徑 Calculated diameter (mm) |
計算重量 Calculated mass (kg/km) |
計算重量 Calculated mass (kg/km) |
||||||
|
CHVV80 CHJV80 CHJPF80 CHJPJ80 |
CHVV90 CHJV90 CHJPF90 CHJPJ90 |
|||||||||||
|
標稱值 nom. |
zui大值 max. |
標稱值 nom. |
zui大值 max. |
標稱值 nom. |
zui大值 max. |
CHVV82 CHJV82 CHJPF86 CHJPJ85 |
CHVV92 CHJV92 CHJPF96 CHJPJ95 |
|||||
|
1*2*0.35 |
7.0 |
8.0 |
64 |
7.0 |
8.0 |
72 |
67 |
9.2 |
10.5 |
111 |
107 |
84 |
|
7*2.*0.35 |
12.2 |
13.5 |
184 |
12.2 |
13.5 |
192 |
184 |
15.0 |
16.5 |
291 |
281 |
167 |
|
14*2*0.35 |
15.8 |
17.5 |
295 |
14.4 |
16.0 |
251 |
242 |
17.5 |
19.0 |
374 |
362 |
579 |
|
24*2*0.35 |
19.9 |
21.5 |
470 |
19.9 |
21.5 |
484 |
467 |
23.1 |
25.0 |
645 |
629 |
1575 |
|
48*02*0.35 |
26.9 |
29.0 |
844 |
26.9 |
29.0 |
863 |
836 |
30.7 |
33.0 |
1124 |
1097 |
3762 |
|
1*2*0.5 |
8.1 |
9.7 |
80 |
8.1 |
9.7 |
86 |
81 |
9.7 |
11.5 |
120 |
115 |
154 |
|
4*2*0.5 |
12.4 |
15.0 |
179 |
12.4 |
15.0 |
183 |
178 |
14.0 |
16.5 |
246 |
238 |
406 |
|
14*2*0.5 |
19.7 |
23.0 |
455 |
19.7 |
23.0 |
467 |
450 |
21.7 |
25.5 |
554 |
538 |
1013 |
|
24*2*0.5 |
25.5 |
29.5 |
693 |
25.5 |
29.5 |
706 |
685 |
28.1 |
32.5 |
819 |
799 |
2304 |
|
48*2*0.5 |
33.6 |
38.5 |
1218 |
33.6 |
38.5 |
1234 |
1206 |
35.8 |
41.0 |
1427 |
1400 |
3688 |
|
1*2*0.75 |
8.9 |
11.0 |
96 |
8.9 |
11.0 |
103 |
97 |
10.5 |
12.5 |
140 |
134 |
182 |
|
4*2*0.75 |
14.1 |
16.5 |
229 |
14.1 |
16.5 |
243 |
234 |
15.9 |
18.5 |
301 |
209 |
664 |
|
14*2*0.75 |
22.9 |
26.5 |
606 |
22.9 |
26.5 |
629 |
610 |
25.1 |
29.5 |
732 |
713 |
1678 |
|
24*2*0.75 |
30.0 |
34.5 |
939 |
30.0 |
34.5 |
966 |
941 |
32.4 |
37.5 |
1109 |
1085 |
4071 |
|
48*2*0.75 |
39.2 |
45.0 |
1770 |
39.2 |
45.0 |
1791 |
1751 |
41.4 |
47.0 |
1983 |
1945 |
7377 |
|
1*2*1 |
10.1 |
11.5 |
126 |
10.1 |
11.5 |
129 |
123 |
11.7 |
13.0 |
167 |
161 |
209 |
|
3*2*1 |
15.2 |
16.5 |
246 |
15.2 |
16.5 |
251 |
242 |
17.5 |
19.0 |
315 |
306 |
432 |
|
7*2*1 |
20.5 |
22.5 |
477 |
20.5 |
22.5 |
487 |
471 |
22.8 |
24.5 |
852 |
566 |
565 |
|
19*2*1 |
31.9 |
34.5 |
1087 |
31.9 |
34.5 |
1110 |
1079 |
34.5 |
37.0 |
1299 |
1269 |
874 |
|
24*2*1 |
35.4 |
38.0 |
1316 |
35.4 |
38.0 |
1342 |
1309 |
38.0 |
40.5 |
1552 |
1518 |
1114 |
|
30*2*1 |
39.1 |
42.0 |
1582 |
39.1 |
42.0 |
1615 |
1577 |
41.7 |
44.5 |
1845 |
1808 |
273 |
|
37*2*1 |
43.2 |
46.0 |
1906 |
43.2 |
46.0 |
1945 |
1904 |
46.0 |
49.0 |
2220 |
2178 |
550 |
|
48*2*1 |
48.3 |
51.5 |
2348 |
48.3 |
51.5 |
2396 |
2350 |
51.1 |
54.5 |
2702 |
2655 |
771 |
|
1*2*1.5 |
10.7 |
12.0 |
149 |
10.7 |
12.0 |
154 |
147 |
12.3 |
13.5 |
194 |
188 |
1137 |
|
3*2*1.5 |
16.8 |
18.5 |
343 |
16.8 |
18.5 |
353 |
338 |
18.6 |
18.5 |
423 |
408 |
1375 |
|
5*2*1.5 |
20.4 |
22.0 |
495 |
20.4 |
22.0 |
511 |
492 |
22.4 |
24.5 |
605 |
586 |
345 |
|
10*2*1.5 |
26.9 |
29.0 |
829 |
26.9 |
29.0 |
855 |
830 |
28.9 |
31.0 |
978 |
952 |
489 |
|
19*2*1.5 |
34.5 |
37.0 |
1363 |
34.5 |
37.0 |
1405 |
1373 |
37.1 |
39.5 |
1610 |
1577 |
825 |
|
30*2*1.5 |
42.3 |
45.0 |
2001 |
42.3 |
45.0 |
2063 |
2023 |
44.9 |
48.0 |
2312 |
2272 |
1345 |
|
37*2*1.5 |
46.7 |
50.0 |
2419 |
46.7 |
50.0 |
2494 |
2449 |
49.5 |
52.5 |
2790 |
2745 |
1590 |
|
48*2*1.5 |
52.3 |
55.5 |
2994 |
52.3 |
55.5 |
3087 |
3037 |
55.1 |
58.5 |
3417 |
3367 |
1886 |
