主要零件材質
|
零件名稱 Part Name |
CF8系列 Line |
CF3系列 Line |
CF8M系列 Line |
CF3M系列 Line |
WCB系列 Line |
|
閥體/閥蓋 Body/Cap |
CF8 |
CF3 |
CF8M |
CF3M |
WCB |
|
閥板 Brake |
CF8 |
CF3 |
CF8M |
CF3M |
WCB |
|
閥桿 Stem |
F304 |
F304L |
F316 |
F316L |
1Cr13 |
|
填料 Stem Packing |
PTFE編織 |
PTFE編織 |
PTFE編織 |
PTFE編織 |
石墨 Graphite |
|
墊片 Gasket |
PTFE+304 |
PTFE+304L |
PTFE+316 |
PTFE+316L |
石墨 Graphite+304 |
|
壓蓋 Gland Flange |
CF8 |
CF3 |
CF8M |
CF3M |
WCB |
|
填料壓環 Stuffing Ring |
304 |
304L |
316 |
316L |
1CrMoA |
|
螺栓 Bolt |
A193-B8 |
A193-B8 |
A193-B8 |
A193-B8 |
35GrMoA |
|
螺母 Nut |
A194-8M |
A194-8M |
A194-8M |
A194-8M |
45 |
主要連接尺寸
|
型號Type |
規格Size(mm) |
尺寸（mm） |
||||||||
|
inch |
DN |
L |
D |
D1 |
D2 |
b |
Z-φd |
H |
D0 |
|
|

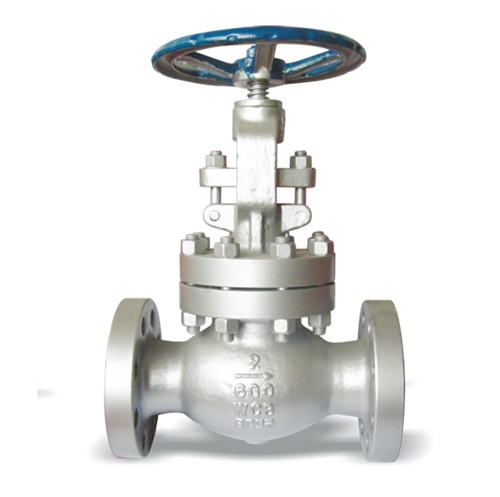

J41W-150LB |
1/2″ |
15 |
108 |
89 |
60.5 |
35 |
12 |
4-φ15 |
200 |
100 |
|
3/4″ |
20 |
117 |
98 |
70 |
43 |
12 |
4-φ15 |
205 |
120 |
|
|
1″ |
25 |
127 |
108 |
79.5 |
51 |
12 |
4-φ15 |
220 |
140 |
|
|
1?″ |
32 |
140 |
117 |
89 |
64 |
13 |
4-φ15 |
240 |
150 |
|
|
1?″ |
40 |
165 |
127 |
98.5 |
73 |
15 |
4-φ15 |
260 |
160 |
|
|
2″ |
50 |
203 |
152 |
120.5 |
92 |
16 |
4-φ19 |
295 |
220 |
|
|
2?″ |
65 |
216 |
178 |
139.5 |
105 |
18 |
4-φ19 |
325 |
220 |
|
|
3″ |
80 |
241 |
190 |
152.5 |
127 |
19 |
4-φ19 |
360 |
240 |
|
|
4″ |
100 |
292 |
229 |
190.5 |
157 |
24 |
8-φ19 |
420 |
280 |
|
|
5″ |
125 |
356 |
254 |
216 |
186 |
24 |
8-φ22 |
460 |
350 |
|
|
6″ |
150 |
406 |
279 |
241.5 |
216 |
26 |
8-φ22 |
500 |
400 |
|
|
8″ |
200 |
495 |
343 |
298.5 |
270 |
29 |
8-φ22 |
550 |
450 |
|
|
10″ |
250 |
622 |
406 |
362 |
324 |
31 |
12-φ25 |
650 |
500 |
|
|
12″ |
300 |
698 |
483 |
432 |
381 |
32 |
12-φ25 |
850 |
550 |
|
|
J41W-300LB |
?″ |
15 |
152 |
95 |
66.5 |
35 |
15 |
4-φ15 |
220 |
120 |
|
?″ |
20 |
178 |
117 |
82.5 |
43 |
16 |
4-φ19 |
230 |
120 |
|
|
1″ |
25 |
203 |
124 |
89 |
51 |
18 |
4-φ19 |
260 |
140 |
|
|
1?″ |
32 |
216 |
133 |
98.5 |
64 |
19 |
4-φ19 |
280 |
140 |
|
|
1?″ |
40 |
229 |
156 |
114.5 |
73 |
21 |
4-φ22 |
300 |
200 |
|
|
2″ |
50 |
267 |
165 |
127 |
92 |
22 |
8-φ19 |
330 |
240 |
|
|
2?″ |
65 |
292 |
190 |
149 |
105 |
25 |
8-φ22 |
360 |
240 |
|
|
3″ |
80 |
318 |
210 |
168.5 |
127 |
29 |
8-φ22 |
400 |
280 |
|
|
4″ |
100 |
356 |
254 |
200 |
157 |
32 |
8-φ22 |
460 |
320 |
|
|
5″ |
125 |
400 |
279 |
235 |
186 |
35 |
8-φ22 |
500 |
400 |
|
|
6″ |
150 |
444 |
318 |
270 |
216 |
37 |
12-φ22 |
550 |
500 |
|
|
8″ |
200 |
559 |
381 |
330 |
270 |
41 |
12-φ25 |
600 |
550 |
|
|
10″ |
250 |
622 |
445 |
387.5 |
324 |
48 |
16-φ29 |
700 |
600 |
|
|
12″ |
300 |
711 |
521 |
451 |
381 |
51 |
16-φ32 |
900 |
650 |
|
|
J41W-600LB |
?″ |
15 |
165 |
95 |
66.5 |
35 |
15 |
4-φ15 |
220 |
120 |
|
?″ |
20 |
190 |
118 |
82.5 |
43 |
16 |
4-φ19 |
230 |
120 |
|
|
1″ |
25 |
216 |
124 |
89 |
51 |
18 |
4-φ19 |
260 |
140 |
|
|
1?″ |
32 |
229 |
133 |
98.5 |
64 |
21 |
4-φ19 |
280 |
140 |
|
|
1?″ |
40 |
241 |
156 |
114.5 |
73 |
23 |
4-φ22 |
300 |
200 |
|
|
2″ |
50 |
292 |
165 |
127 |
92 |
26 |
8-φ19 |
330 |
240 |
|
|
2?″ |
65 |
330 |
190 |
149 |
105 |
29 |
8-φ22 |
400 |
240 |
|
|
3″ |
80 |
356 |
210 |
168 |
127 |
32 |
8-φ22 |
440 |
280 |
|
|
4″ |
100 |
432 |
273 |
216 |
157 |
38 |
8-φ25 |
500 |
350 |
|
|
5″ |
125 |
508 |
330 |
266.5 |
186 |
45 |
8-φ29 |
550 |
400 |
|
|
6″ |
150 |
559 |
356 |
292 |
216 |
48 |
12-φ29 |
600 |
500 |
|
|
8″ |
200 |
660 |
419 |
349 |
270 |
56 |
12-φ32 |
650 |
550 |
|
|
10″ |
250 |
787 |
508 |
432 |
324 |
64 |
16-φ35 |
780 |
650 |
|
|
12″ |
300 |
838 |
559 |
489 |
381 |
67 |
20-φ35 |
980 |
700 |
|
