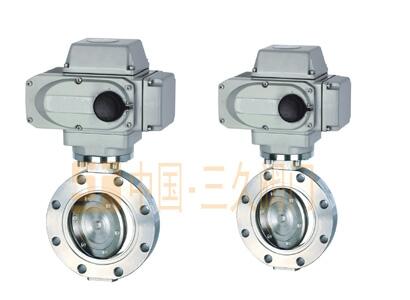

GID電動高真空蝶閥
GID電動高真空蝶閥是以電動裝置驅動閥桿與閥板執行啟閉動作。用于接通或切斷真空管路中的氣流。適用介質為純凈空氣和非腐蝕性氣體。
主要技術性能
|
適用范圍：Applicability |
105～1.3×10-4Pa |
|
閥門漏率：Valve Leak Rate |
≤1.3×10-4Pa.L/S. |
|
適用溫度：Applicable Temperature |
-25～+80℃(丁 橡膠) |
|
電 源：Loop Temperature time |
220V/50Hz |
|
安裝位置：Install the direction |
任意 |
主要零件材料
閥體、閥蓋、閥桿：碳鋼或不銹鋼
密封件：丁 橡膠、氟橡膠。
外形及連接尺寸(mm)
|
Model 型號 |
DN |
D |
Do |
D1 |
B |
H |
B1 |
L |
n-φc |
|
GID-40 |
40 |
85 |
70 |
44 |
22 |
205 |
90 |
155 |
4-φ7 |
|
GID-50 |
50 |
110 |
90 |
55 |
22 |
218 |
90 |
155 |
4-φ7 |
|
GID-65 |
65 |
125 |
105 |
70 |
26 |
224 |
102 |
155 |
4-φ9 |
|
GID-80 |
80 |
145 |
125 |
85 |
30 |
235 |
102 |
155 |
4-φ9 |
|
GID-100 |
100 |
170 |
145 |
105 |
30 |
247 |
102 |
155 |
4-φ12 |
|
GID-100 |
125 |
195 |
170 |
131 |
35 |
260 |
125 |
155 |
4-φ12 |
|
GID-150 |
150 |
220 |
195 |
156 |
35 |
272 |
115 |
155 |
8-φ12 |
|
GID-200 |
200 |
275 |
250 |
208 |
40 |
320 |
205 |
155 |
8-φ12 |
|
GID-250 |
250 |
330 |
300 |
258 |
45 |
350 |
205 |
208 |
8-φ14 |
|
GID-300 |
300 |
380 |
350 |
308 |
55 |
375 |
152 |
208 |
8-φ14 |
|
GID-400 |
400 |
500 |
465 |
410 |
60 |
451 |
180 |
256 |
8-φ18 |
|
GID-500 |
500 |
600 |
565 |
510 |
80 |
535 |
220 |
280 |
12-φ18 |
|
GID-600 |
600 |
710 |
670 |
610 |
100 |
760 |
270 |
320 |
12-φ21 |
|
GID-800 |
800 |
920 |
815 |
815 |
130 |
960 |
320 |
320 |
20-φ21 |
|
GID-900 |
900 |
1040 |
990 |
915 |
130 |
970 |
250 |
350 |
24-φ23 |
|
GID-1000 |
1000 |
1120 |
1090 |
1015 |
140 |
980 |
250 |
350 |
32-φ14 |
