產品名稱：FIG 1600青銅球閥（標準端口）臺灣金口凡而閥門 砲金球閥
| FIG 1600 |
| Bronze Ball Valve (Full Port) |
600 WOG |
|
 |
|
| Parts and materials list |
| Part |
Material |
| Body |
Cast Bronze |
| Bonnet |
Cast Bronze |
| Stem |
Brass |
| Ball |
Brass |
| Ball seat |
PTFE |
| Gland |
Brass |
| Handle |
SUS 304 |
| Spring washer |
SUS 304 |
|
| |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |

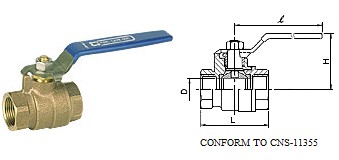

| Size |
15 |
20 |
25 |
32 |
40 |
50 |
| L |
51 |
60 |
73 |
84 |
92 |
111 |
| H |
39 |
50 |
54 |
64 |
69 |
77 |
 |
86 |
122 |
122 |
133 |
133 |
156 |
| D |
12.7 |
19 |
25 |
31.8 |
38 |
50 |
| * |
1/4" 1502, 3/8" 1503 conform to full bore type refer to the dimension on page 1. |
| * |
Revolve in 90o for swift open/close. |
| * |
Full bore type, for maintaining the pipe pressure & stream normally, |
| * |
Bronze products, for meeting the drinking sanitation. |
|
Working pressure marking = 600psi
Water, Oil, Air in normal temperature = 28kgf/cm2
Water, Oil, Air under 120oC = 7kgf/cm2
Hydrostatic test pressure
Shell = 42kgf/cm2
Seat = 6kgf/cm2 |
|
|
|
以上是本產品的詳細介紹-由臺灣（KGMC）金口閥門-上海銷售部所編輯。
