產品名稱：FIG 41銅閘閥 FIG 4100砲金銅閘閥 臺灣凡而青銅閘閥
| FIG 4100 |
| Bronze Gate Valve |
CLASS 125 | |
 |
|
| Parts and materials list |
| Part |
Material |
| Body |
Cast Bronze |
| Bonnet |
Cast Bronze |
| Disc |
Cast Bronze |
| Stem |
Brass |
| Packing nut |
Brass |
| Pacing |
PTFE |
| Handwheel |
Cast Iron |
| Name plate |
Aluminum | |
| |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
2-1/2 |
3 |
4 |
| Size |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |

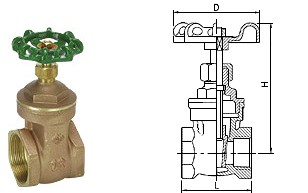

| L |
44 |
48 |
54 |
61 |
63 |
71 |
88 |
96 |
116 |
| H |
74 |
84 |
100 |
116 |
125 |
153 |
186 |
219 |
259 |
| D |
54 |
54 |
61 |
75 |
75 |
81 |
100 |
113 |
142 |
Working pressure marking = 125psi
Water, Oil, Air under 120oC = 10kgf/cm2
Saturated steam=5kgf/cm2
Hydrostatic test pressure
Shell = 17kgf/cm2
Seat = 13kgf/cm2 | | |
