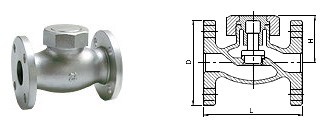

產品名稱：FIG F69D00 球墨鑄鐵止回閥 臺灣金口FIG F69D00球墨鑄鐵止回閥 JIS10K
| FIG F69D00 |
| Ductile Iron Lift Check Valve |
JIS-10K | |
|
|
|
| Parts and materials list |
| Part |
Material |
| Body |
FCD 45 |
| Bonnet |
FCD 45 |
| Disc |
SUS 410 |
| Body seat ring |
SUS 410 |
| Connecting nut |
FCD 45 |
| Gasket |
Graphite | |
| |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
| Size |
15 |
20 |
25 |
32 |
40 |
50 |
| L |
108 |
117 |
127 |
140 |
165 |
203 |
| H |
46.8 |
50.2 |
60.8 |
69.7 |
78.5 |
90.1 |
| D |
95 |
100 |
125 |
135 |
140 |
155 |
Working pressure marking = 10kgf/cm2
Non-shock water under 120oC = 14kgf/cm2
Steam, Air, Oil, Pulse stream under 120oC = 14kgf/cm2
Steam, Air, Oil, Pulse stream under 220oC = 10kgf/cm2
Shell = 20kgf/cm2
Seat = 15kgf/cm2 | | |
