產品名稱：FIG F75S000 不銹鋼Y型過濾器 臺灣金口FIG F75S000過濾器 JIS-10K

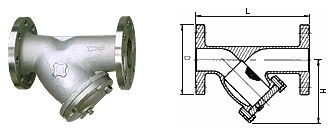

| FIG F75S000 |
| Stainless Steel Y-Strainer |
JIS-10K | |
|
|
|
| Parts and materials list |
| Part |
Material |
| Body |
CF 8, CF 8M |
| Bonnet |
CF 8, CF 8M |
| Gasket |
Teflon |
| Screen |
SUS 304 |
| Bonnet bolt/nut |
SUS 304 |
| Plug |
SUS 304 | |
| |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
| Size |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
| L |
210 |
250 |
280 |
340 |
380 |
420 |
500 |
| H |
140 |
175 |
196 |
244 |
277 |
320 |
390 |
| D1 |
155 |
175 |
185 |
210 |
250 |
280 |
330 |
Working pressure marking = 10kg/cm2
Non-shock water under 120oC = 14kgf/cm2
Steam, Water, Oil, Air under 220oC = 12kgf/cm2
Steam, Oil, Air under 300oC = 10kgf/cm2
Hydrostatic test pressure
Shell = 20kgf/cm2
Seat = 15kgf/cm2 | | |
