ZCM1.03-3000/B液壓馬達 ZCM1.03-3000/B液壓傳動裝置 ZCM1.03-3000/B液壓回轉減速機
寧波普雷斯公司是專業生產銷售液壓設備的廠家，主營產品由寧波普雷斯聯合設計型系列，力士樂系列，油研系列，威格士系列液壓閥，液壓泵，液壓馬達等。可以替代進口美國伊頓、丹麥薩奧丹佛斯擺線馬達。意大利英特姆馬達、薩姆馬達 STF斯達佛馬達 丹尼遜、邦飛利、布雷維尼減速機。產品型號齊全，價格合理，歡迎各位前來選購！批量訂購產品價格可下浮。若您在液壓方面有疑問，歡迎來電咨詢~
ZJM型帶減速器液壓馬達
ZJM1.03-730/B-F1-K1-Y,ZJM1.03-920/B-F1-K1-Y, ZJM1.03-1450/B-F1-K1-Y, ZJM1.03-1840/B-F1-K1-Y,
ZJM1.06-2730/B-F6-K-Y, ZJM1.06-3480/B-F6-K-Y, ZJM1.06-4285/B-F6-K-Y,
ZJM600/C,ZJM900/C,ZJM900/C, ZJM1000/C, , ZJM1200/C,
ZJM1500/C-M20-H20-D31,ZJM1800/C-M20-H20-D31, ZJM2100/C-M20-H20-D31,ZJM4200/C,ZJM6300/C,
ZJM7000/C-M-H-D47,ZJM10000/C-M-H-D47 ,ZJM12000/C-M-H-D47,
ZCM液壓傳動裝置，適用于各種機械液壓傳動結構，回轉機構等設備
ZCM1.03-1000/B-F1-K1-K3Y,ZCM1.03-1500/B-F1-K1-K3Y, ZCM1.03-2000/B-F1-K1-K3Y, ZCM1.03-3000/B-F1-K1-K3Y,
ZCM1.06-4000/B-F6-K-K3Y1,ZCM1.06-5000/B-F6-K-K3Y1, ZCM1.03-6000/B-F6-K-K3Y1,
ZCM2.06K-4000/B-F-K-K3Y,ZCM2.06K-5000/B-F-K-K3Y, ZCM2.06K-8000/B-F-K-K3Y,
ZCM2.12-10000/B-F-K-K3Y,ZCM2.12-12500/B-F-K-K3Y,
ZCM3000/C, ZCM3500/C,ZCM4000/C,
ZCM2.03-1500/B-F-K-Y,ZCM2.03-2000/B-F-K-Y, ZCM2.03-3000/B-F-K-Y,
ZCM2.06-4000/B-M-K-Y,ZCM2.06-5000/B-M-K-Y, ZCM2.06-6000/B-M-K-Y,
ZCM2.09-7000/B-F-K-Y,ZCM2.09-8000/B-F-K-Y, ZCM2.09-9000/B-F-K-Y,
ZCM3.07-7000/B-F-K-Y10,
ZCM3.12-8000/B-F-K-Y,ZCM3.12-10000/B-F-K-Y, ZCM3.12-125000/B-F-K-Y,
ZCM3.15-15000/B-F1-K1-Y
ZCM3.20-20000/B-F-K-Y
ZCM液壓傳動裝置技術參數
| 型號TYPE | 排量Displacementml/r | 輸出扭矩Torque(N.m) | 工作壓力Pressure(Mpa) | 轉速范圍Speedrange(r/min) | 制動器Braker | 減速器傳動比Ratioofgearbox | 液壓馬達Associatedmotor | 重量kgWeight | 長度mmLength | |||
| 額定Ratedtorque | zui大Maxtorque | 額定Ratedpressure | zui高Maxpressure | 開啟壓力MpaReleasingPressure | 制動扭矩N.mBraketorque | |||||||
| ZCM1.03-1000/B | 728.6 | 1000 | 1300 | 11.5 | 16 | 9-60 | 2.6 | 1660 | 4.58 | BM4-160 | 50 | 429 |
| ZCM1.03-1500/B | 921.3 | 1500 | 1750 | 13.6 | 16 | 9-60 | 2.6 | 2216 | 4.58 | BM4-200 | 50 | 433.5 |
| ZCM1.03-2000/B | 1456.8 | 2000 | 2700 | 11.5 | 16 | 9-50 | 2.6 | 2771 | 4.58 | BM4-320 | 50 | 446 |
| ZCM1.03-3000/B | 1842.6 | 3000 | 3250 | 13.7 | 15 | 9-40 | 2.6 | 3880 | 4.58 | BM4-400 | 50 | 455 |
| ZCM1.06-4000/B | 2731.3 | 4000 | 5000 | 12.3 | 15.5 | 7-40 | 3.0 | 7430 | 4.42 | BM5-630 | 110 | 474 |
| ZCM1.06-5000/B | 3481.1 | 5000 | 6000 | 12.0 | 14.5 | 6-35 | 3.0 | 7430 | 4.42 | BM5-800 | 110 | 488 |
| ZCM1.06-6000/B | 4284.4 | 6000 | 6500 | 11.7 | 12.7 | 6-30 | 3.0 | 7430 | 4.42 | BM5-985 | 110 | 503 |
| ZCM2.06K-4000/B | 3990.6 | 4000 | 5000 | 8.5 | 10.7 | 3-15 | 3.0 | 9260 | 25.13 | BM4-160 | 90 | 435 |
| ZCM2.06K-5000/B | 3990.6 | 5000 | 6000 | 10.6 | 12.8 | 3-15 | 3.0 | 9260 | 25.13 | BM4-160 | 90 | 435 |
| ZCM2.06K-6000/B | 5046.1 | 6000 | 6500 | 10.0 | 11.0 | 3-15 | 3.0 | 9260 | 25.13 | BM4-200 | 90 | 439 |
| ZCM2.12-10000/B | 6971.9 | 10000 | 12500 | 12.0 | 15.0 | 2-15 | 2.8 | 25900 | 22.14 | BM5S1-315 | 200 | 576.5 |
| ZCM2.12-12500/B | 8849.4 | 12500 | 15000 | 11.7 | 14.0 | 1.5-15 | 2.8 | 25900 | 22.14 | BM5S1-400 | 200 | 583.5 |
| ZCM1200-C | 580 | 6000 | 1500 | 15.9 | 20 | 3-80 | 2.6 | 2800 | 6 | JMDG2-100 | 70 | - |
| ZCM1800/C | 940 | 1200 | 2260 | 15.9 | 20 | 3-80 | 2.6 | 2800 | 6 | JMDG2-150 | 70 | – |
| ZCM2000/C | 1050 | 1800 | 2630 | 15.2 | 20 | 3-66 | 2.6 | 2800 | 6 | JMDG2-175 | 70 | – |
| ZCM2500/C | 1200 | 2500 | 3000 | 16.6 | 20 | 3-66 | 2.6 | 3600 | 6 | JMDG2-200 | 70 | – |
| ZCM3000/C | 1520 | 3000 | 3820 | 15.7 | 20 | 2-52 | 2.8 | 7500 | 6 | JMDG3-250 | 110 | 431 |
| ZCM3500/C | 1800 | 3500 | 4500 | 15.5 | 20 | 2-52 | 2.8 | 7500 | 6 | JMDG3-300 | 110 | 431 |
| ZCM4000/C | 2100 | 4000 | 5260 | 15.2 | 20 | 2-52 | 2.8 | 7500 | 6 | JMDG3-350 | 110 | 431 |

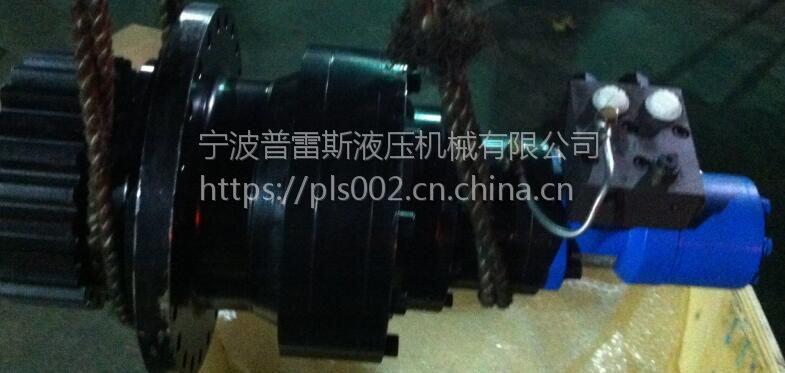

ZCM液壓傳動裝置由液壓馬達，多片式摩擦制動器和行星齒輪減速器組成，具有尺寸小、重量輕、扭矩大、啟動效率和傳動效率高，噪音低等特點。輸出軸可承受較大徑向力.ZCM1600/B(C)-ZCM6000/B(C)為帶一級行星減速器的傳動裝置，ZCM2.3/B-ZCM2.6/B系列液壓傳動裝置帶二級行星減速器，均由上述零部件及有制動功能的閥組等組成。液壓傳動裝置適用于各種機械的液壓傳動機構，回轉機構等設備中。
