止或閥系列
Check Valve
此元件可執行「或」之功能，也就是說，假如有至少一個的信號出現，則即會有一輸出信號產生。
This device has “OR” logic function, ie, when at least 1 signal is detected, an output signal will be generated.
或閥用於從不同的位置來控制閥或氣壓缸時之用，亦用於「或」邏輯迴路上。
或閥有2輸入口(X,Y)及一輸出口(A)。它會自動封住沒有受壓之一端，如果兩個入口同時有信號，則較高之信號將接通至輸出口A上。
This “OR” valve can be applied to control Pneumatic Valve or Control Valve at different positions, also can be applied to the “OR” logic circuit. There are 2 Input Ports (X,Y) and 1 Output Port (A). It will automatically close the input port which is no pressure loading, if 2 input ports detect pressure signals simultaneously, it will take the stronger signal and open the output port for it.
此元件可執行「或」之功能，也就是說，假如有至少一個的信號出現，則即會有一輸出信號產生。
This device has “OR” logic function, ie, when at least 1 signal is detected, an output signal will be generated.
或閥用於從不同的位置來控制閥或氣壓缸時之用，亦用於「或」邏輯迴路上。
或閥有2輸入口(X,Y)及一輸出口(A)。它會自動封住沒有受壓之一端，如果兩個入口同時有信號，則較高之信號將接通至輸出口A上。
This “OR” valve can be applied to control Pneumatic Valve or Control Valve at different positions, also can be applied to the “OR” logic circuit. There are 2 Input Ports (X,Y) and 1 Output Port (A). It will automatically close the input port which is no pressure loading, if 2 input ports detect pressure signals simultaneously, it will take the stronger signal and open the output port for it.

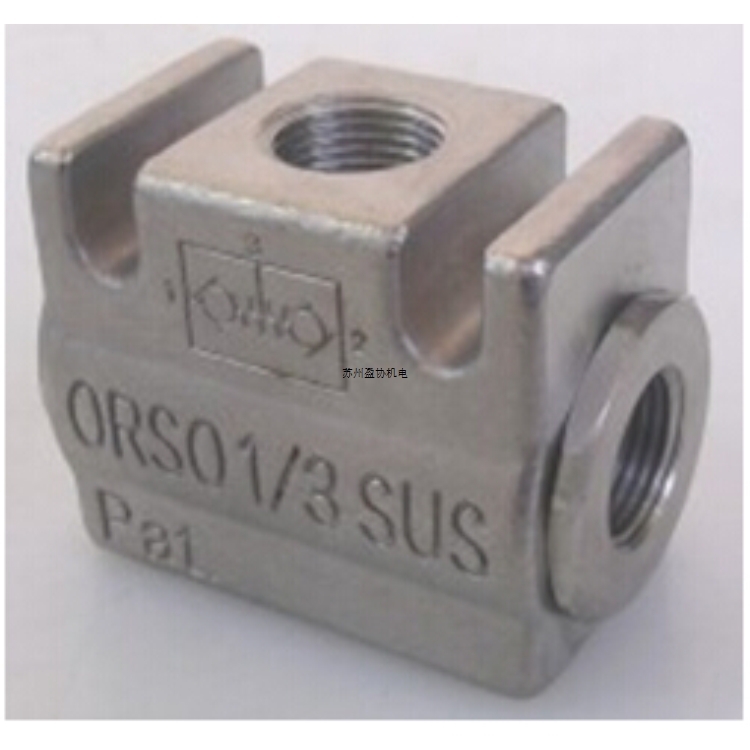

| 型式/Type | ORS01/3-SUS | |
|
操作壓力/OPERATING PRESSURE |
0.5～70 bar | |
|
環境溫度/TEMPERATURE RANGE |
-15～80℃ | |
|
適用流體/SUITABLE FLUID |
一般中性流體 General neutral fluid | |
| 通過面積/ AREA | 78mm2 | |
|
通過孔徑/NORMAL DIAMETER |
10mm | |
| 牙口徑/ CONNECTION | PT 3/8” | |
|
材質/MATERIAL |
閥體/ VALVE BODY | 不銹鋼/SUS |
| 油封/ SEAL | 丁睛橡膠/Perbunan | |
