商品詳情

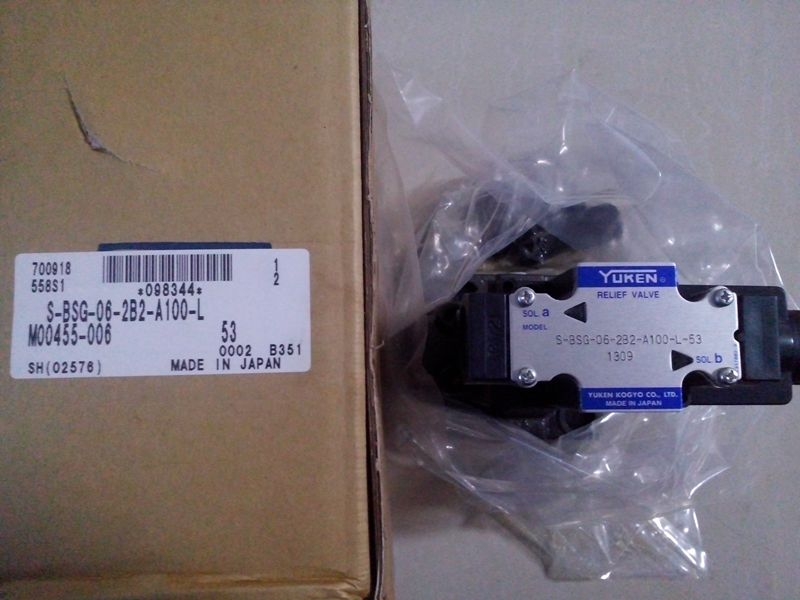

YUKEN油研電磁溢流閥由溢流閥和電磁換向閥組成。電磁換向閥直接安裝在溢流閥上，並與溢流閥遙控口連通，系統壓力可以由電磁線圈的電力信號遙控，令連接遙控溢流閥可實現兩級或三級的壓力控制。

YUKEN油研電磁溢流閥【油研】

型號	最高使用壓力MPa	壓力調整范圍L/min	最大流量L/min	質量kg
S-BSG-03,51	25.0	注)※-25.0	100	6.3
S-BSG-06,51			200	7.2
S-BSG-10,51			400	12.7

YUKEN油研型號說明

F-	A-	S-	BS	G	-03	-V	-2B3A	-A100	-N	-L	-51
特殊密封	注)1 帶緩沖閥	低噪聲	系列號	連接形式	公稱尺寸	高卸荷特性注)2	排油形式注3	線圈符號注)4	電氣接線形式	手輪調節方向	設計號注)6
F:使用磷酸酯工作液時標注	Ａ：僅帶緩沖閥時標注	S:低噪聲	BＳ:電磁溢流閥	G:板式	03	V:僅在高卸荷時標注	2B3A 2B3B 2B2B 2B2 3C2 3C3	交流； A 100,A 120 A 200,A 240 直流；注)5 D12,D24 D100 本整型； R100,R200	無記號:接線盒 N:DIN插座		51
					06						51
					10						51

安裝螺釘

型號	內六角螺釘 GB-70-85
S-BSG-03	M12×40 4個
S-BSG-06	M16×50 4個
S-BSG-10	M20×60 4個

S-BSG-10-2B3B-D24-N1-51	S-BSG-03-V-2B3A-A200	S-BSG-06-2B3A-A220-N1-L-51
S-BSG-10-2B2-D24-N-51	S-BSG-03-V-2B3A-A100	S-BSG-06-3C3-A110-N1-L-51
S-BSG-10-2B2-D24-N1-51	S-BSG-03-V-2B3A-D24	S-BSG-06-3C2-A110-N1-L-51
S-BSG-10-2B2-D24-51	S-BSG-03-V-2B3A-D12	S-BSG-06-2B2-A110-N1-L-51
S-BSG-10-2B2-A220-N-51	S-BSG-03-V-2B3B-A200	S-BSG-06-2B2B-A110-N1-L-51
S-BSG-10-2B2-A220-N1-51	S-BSG-03-V-2B3B-A100	A-S-BSG-03-V-2B3A-A200
S-BSG-10-2B2-A220-51	S-BSG-03-V-2B3B-D24	A-S-BSG-03-V-2B3A-A100
S-BSG-10-2B3A-D24-N-51	S-BSG-03-V-2B3B-D12	A-S-BSG-03-V-2B3A-D24
S-BSG-10-2B3A-D24-N1-51	S-BSG-03-V-2B2B-A200	A-S-BSG-03-V-3C3-D12
S-BSG-10-2B3A-D24-51	S-BSG-03-V-2B2B-A100	A-S-BSG-03-V-3C3-D24
S-BSG-10-2B3A-A220-N-51	S-BSG-03-V-2B2B-D24	A-S-BSG-03-V-3C3-A100
S-BSG-10-2B3A-A220-N1-51	S-BSG-03-V-2B2B-D12	A-S-BSG-03-V-3C3-A200
S-BSG-10-2B3A-A220-51	S-BSG-03-V-2B2-A200	A-S-BSG-03-V-3C2-A100
S-BSG-10-2B3B-D24-N-51	S-BSG-03-V-2B2-A100	A-S-BSG-03-V-3C2-A200
S-BSG-10-2B3B-D24-N1-51	S-BSG-03-V-2B2-D24	A-S-BSG-03-V-2B2-D12
S-BSG-10-2B3B-D24-51	S-BSG-03-V-2B2-D12	A-S-BSG-03-V-2B2-D24
S-BSG-10-2B3B-A220-N-51	S-BSG-03-V-3C2-A200	A-S-BSG-03-V-2B2-A100
S-BSG-10-2B3B-A220-N1-51	S-BSG-03-V-3C2-D24	A-S-BSG-03-V-2B2-A200
S-BSG-10-2B3B-A220-51	S-BSG-03-V-3C3-A200	A-S-BSG-03-V-2B2B-D12
S-BSG-10-2B2B-D24-N-51	S-BSG-03-V-3C2-A100	A-S-BSG-03-V-2B2B-D24
S-BSG-10-2B2B-D24-N1-51	S-BSG-03-V-3C2-D12	A-S-BSG-03-V-2B2B-A100
S-BSG-10-2B2B-D24-51	S-BSG-03-V-3C3-A100	A-S-BSG-03-V-2B2B-A200
S-BSG-10-2B2B-A220-N-51	S-BSG-03-V-3C3-D12	A-S-BSG-03-V-2B3B-D12
S-BSG-10-2B2B-A220-N1-51	S-BSG-03-V-3C3-D24	A-S-BSG-03-V-2B3B-D24
S-BSG-10-2B2B-A220-51	S-BSG-06-2B3A-A110-N1-L-51	A-S-BSG-03-V-2B3B-A100
S-BSG-10-3C2-D24-N-51	S-BSG-06-2B3B-A110-N1-L-51	A-S-BSG-03-V-2B3B-A200
S-BSG-10-3C2-D24-N1-51	S-BSG-06-3C3-D24-N1-R-51	A-S-BSG-03-V-2B3A-D12
S-BSG-10-3C2-D24-51	S-BSG-06-3C2-D24-N1-R-51	A-S-BSG-06-2B3B-A100-L-52
S-BSG-10-3C2-A220-N-51	S-BSG-06-2B2-D24-N1-R-51	A-S-BSG-06-V-2B3B-A100
S-BSG-10-3C2-A220-N1-51	S-BSG-06-2B2B-D24-N1-R-51	F-A-S-BSG-06-V-2B3B-A1220-N-L-51
S-BSG-10-3C2-A220-51	S-BSG-06-2B3B-D24-N1-R-51	A-S-BSG-06-2B3B-A110-L-53
S-BSG-10-3C3-D24-N-51	S-BSG-06-2B3A-D24-N1-R-51
S-BSG-10-3C3-D24-N1-51	S-BSG-06-3C3-A220-N1-R-51
S-BSG-10-3C3-D24-51	S-BSG-06-3C2-A220-N1-R-51
S-BSG-10-3C3-A220-N-51	S-BSG-06-2B2-A220-N1-R-51
S-BSG-10-3C3-A220-N1-51	S-BSG-06-2B2B-A220-N1-R-51
S-BSG-10-3C3-A220-51	S-BSG-06-2B3B-A220-N1-R-51
S-BSG-10-3C6-D24-N-51	S-BSG-06-2B3A-A220-N1-R-51
S-BSG-10-3C6-D24-N1-51	S-BSG-06-3C3-A110-N1-R-51
S-BSG-10-3C6-D24-51	S-BSG-06-3C2-A110-N1-R-51
