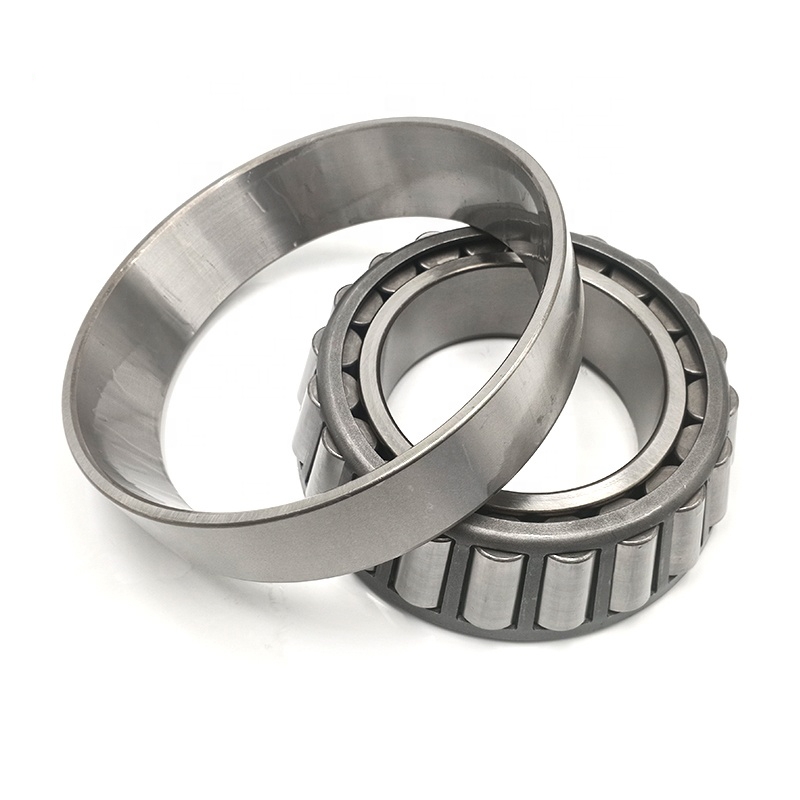

產品類型：英制圓錐滾子軸承軸承型號：LM12749/11SET編號：SET16內徑(d):22.225mm外徑(D):50.005mm裝配高度(T):13.495mm內圈高度(B):14.260mm外圈高度(C):9.525mm重量:0.12KG硬度:59-62HRC滾子數量：18粒保持器：壓頂保持器材質：軸承鋼，GCR15外觀：精美，光亮，無劃痕，無磕碰傷包裝：工業包裝或單個彩盒包裝防銹：防銹質保二年產品特點：高轉速 壽命長 高精度 低噪音用途: 汽車軸承 汽車前輪軸承 車橋軸承
臨清市普菲軸承有限公司生產深溝球軸承和圓錐滾子軸承，英制圓錐滾子軸承，
產品全檢。內套和外套可以互換使用，按您要求來做包裝，如有需要，歡迎隨時詢價！
|
bearing size
|
size
|
weight
|
||||
|
（mm）
|
（KG）
|
|||||
|
d
|
D
|
T
|
B
|
C
|
Weight
|
|
|
LM12749/10
|
21.987
|
45.237
|
15.494
|
16.637
|
12.067
|
0.116
|
|
LM11949/10
|
19.05
|
45.327
|
15.494
|
16.637
|
12.065
|
0.12
|
|
L45449/10
|
29
|
50.292
|
14.224
|
14.732
|
10.668
|
0.113
|
|
LM12649/10
|
21.43
|
50.005
|
17.526
|
18.288
|
13.97
|
0.168
|
|
LM12749/11
|
22.225
|
50.005
|
13.495
|
14.260
|
9.525
|
0.12
|
|
LM102949/10
|
45.242
|
73.431
|
19.558
|
19.812
|
15.748
|
0.308
|
|
LM501349/10
|
41.275
|
73.431
|
19.558
|
19.812
|
14.732
|
0.329
|
|
L44643/10
|
25.4
|
50.292
|
14.224
|
14.732
|
10.668
|
0.126
|
|
L44649/10
|
26.988
|
50.292
|
14.224
|
14.732
|
10668
|
0.119
|
|
L68149/10
|
35
|
59.131
|
15.875
|
16.764
|
11.938
|
0.172
|
|
45284/45220
|
50.8
|
104.775
|
30.162
|
30.958
|
23.812
|
1.115
|
|
47874/47420
|
69.85
|
120
|
32.545
|
32.545
|
26.195
|
1.45
|
|
LM48548/LM48510
|
34.925
|
65.088
|
18.034
|
18.288
|
13.97
|
0.246
|
|
LM48548/LM48511A
|
34.925
|
65.088
|
21.082
|
18.288
|
17.018
|
0.273
|
|
LM48548A/LM48511A
|
34.925
|
65.088
|
21.082
|
18.288
|
17.018
|
0.273
|
|
53176/53375
|
44.45
|
95.25
|
30.958
|
28.3
|
20.638
|
0.927
|
|
53178/53375
|
44.45
|
95.25
|
30.958
|
28.3
|
20.638
|
0.927
|
|
55176/55443
|
44.45
|
112.712
|
30.162
|
26.909
|
20.638
|
1.421
|
|
55187/55443
|
47.625
|
112.712
|
30.162
|
26.909
|
20.638
|
1.371
|
|
LM67048/LM67010
|
31.75
|
59.131
|
15.875
|
16.764
|
11.811
|
0.176
|
|
M86649/M86610
|
30.162
|
64.292
|
21.433
|
21.433
|
16.67
|
0.338
|
|
HN88649/HM88610
|
34.925
|
72.233
|
25.4
|
25.4
|
19.842
|
0.491
|
|
JLM104948/JLM104910
|
50
|
82
|
21.501
|
21.501
|
17
|
0.419
|
|
LM104949/LM104911
|
50.8
|
82.55
|
21.59
|
22.225
|
16.51
|
0.414
|
|
LM501349/LM501314
|
41.275
|
73.431
|
21.43
|
19.812
|
16.604
|
0.335
|
|
LM501349/LM501310
|
41.275
|
73.431
|
19.558
|
19.812
|
14.732
|
0.323
|
|
LM603049/LM603012
|
45.242
|
77.788
|
21.43
|
19.842
|
16.667
|
0.377
|
|
LM603049/LM603014
|
45.242
|
80
|
19.842
|
19.842
|
15.08
|
0.394
|
|
M802048/M802011
|
41.275
|
82.55
|
26.543
|
25.654
|
20.193
|
0.623
|
